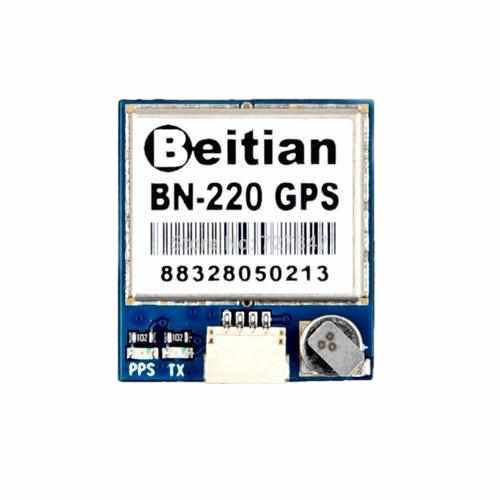

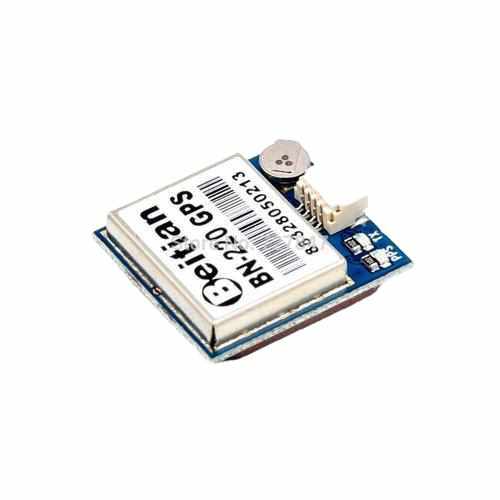

1 / 2 / 3pcs BEITIAN BN-220 TTL level GNSS Module

Specification

Electrical Characteristics

Chipset : M8030-KT

Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS

Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1

Channels : 72 Searching Channel

Sensitivity

Tracking : -167dBm

Reacquisition : -160dBm

Cold start : -148dBm

Hot start : -156dBm

Accuracy

Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)

Velocity : 0.1m/sec 95% (SA off)

Timing : 1us synchronized to GPS time

Acquisition Time

Cold Start : 26s

Warm start : 25s

Hot start : 1s

Data and Update Rate

Support Rate : 4800bps to 921600bps,Default 9600bps

Data Level : TTL or RS-232,Default TTL level

Data Protocol : NMEA-0183, Default NMEA-0183

Single GNSS : 1Hz-18Hz

Concurrent GNSS : 1Hz-10Hz,Default 1Hz

Operational Limits

Altitude : 50,000m Max

Velocity : 515m/s Max

Acceleration : Less than 4g

Power consumption

VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V

Current : Capture 50mA/5.0V

Operating temp : -40 °C ~ +85°C

Storage Temp : -40°C ~ +105°C

Indicator :

TX LED:blue.The data output, TX LED flashing

PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed

Package Included

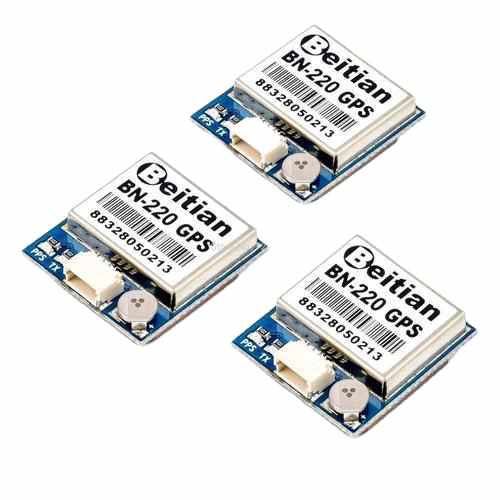

1pcs / 2pcs / 3pcs x BN-220 GPS Module with 15cm cable
