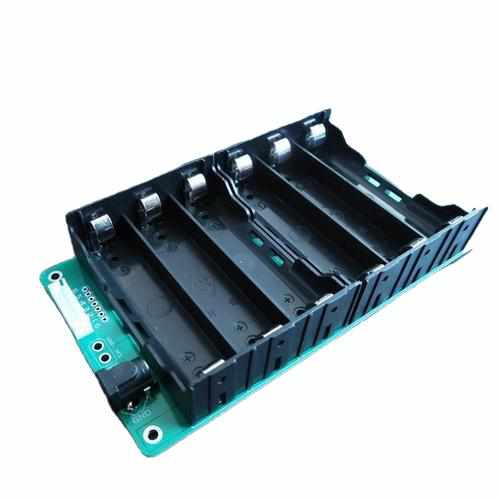

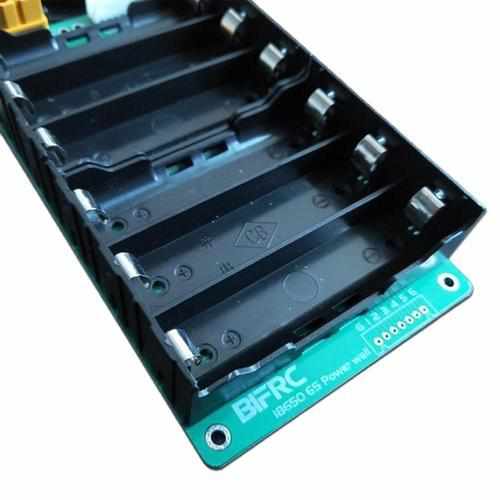

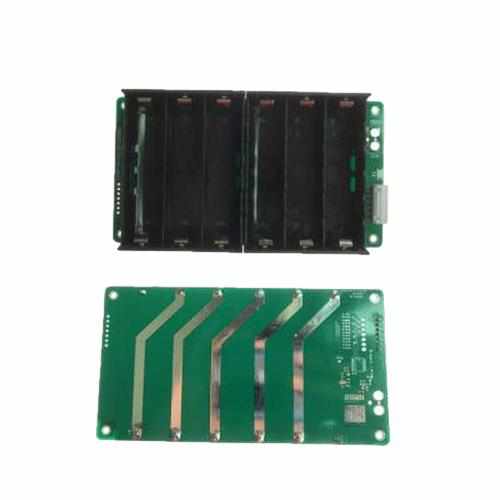

18650 6S Power Wall Battery Box Protection Main Board

Features:

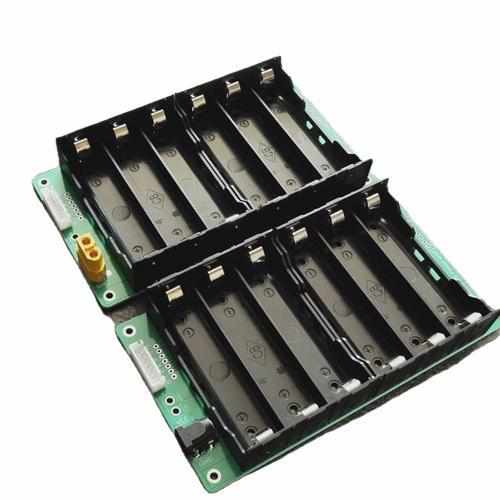

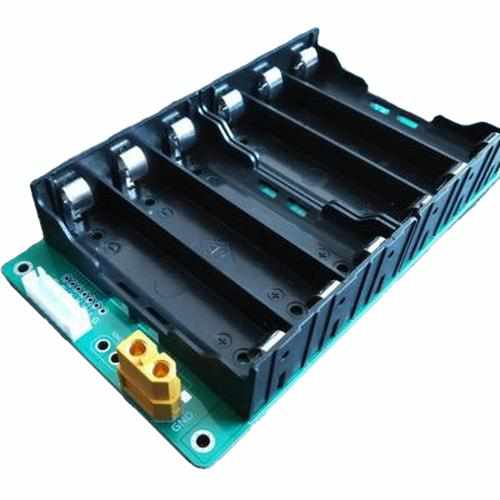

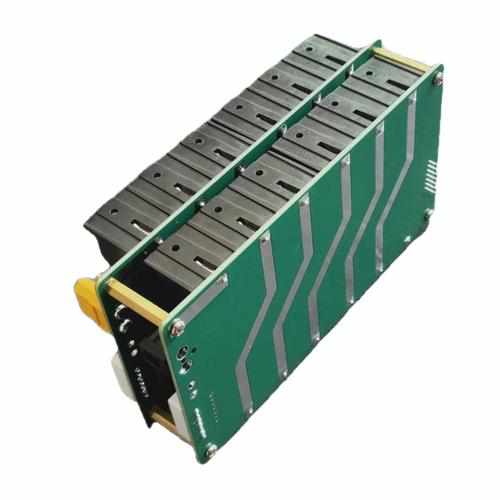

Multifunctional 18650 battery station, using 6S circuit design, can directly weld XT60 / XT30 / DC5.5 plugs, the board reserves a stacking parallel interface, and a parallel board can be used to stack tower layout to increase capacity.

Basic parameters:
PCB size: 145 * 79mm
PCB board thickness: 2.0mm
Number of batteries supported: 6S
Support battery type: 18650
Output voltage: 4.2 * 6 = 25.2V (see battery parameters for details)
Output current: PCB maximum support 50A (output current depends on battery parameters)
Charger: Must choose 25.2V charger
The discharge cut-off voltage of the protection board is 17.5V or 2.9V to stop the discharge!
