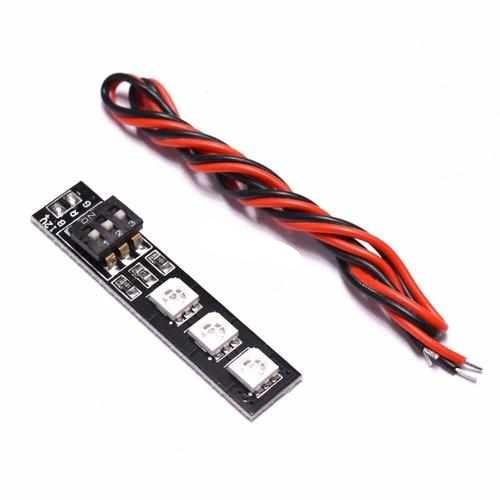

2 / 4pcs RGB 5050 LED Lights Board

RGB 5050 LED Lights Board 7 Color 5V 12V 16V with DIP Switch for QAV250 FPV Quadcopter Mini Quad F450 Multirotor. This LED is suitable for light DIY on mutirotor, airplane, helicopter, RC car... etc.

The LED adopts 3 pieces of RGB 5050 lamp beads, with DIP switch on board. According to toggle different switch combination, the LED can switch among 7 colors.

Specifications:

5V: Working Voltage: 4-6V DC

12V: Working Voltage: 10-13V DC

16V:Working Voltage: 14-17V DC

Dimension: 42x10mm

Weight: 1.8g

When the output is 5V, the power and current of the LED:

B ON = Blue 0.35W

R ON = Red 0.35W

G ON = Green 0.35W

B + R ON = Purple 0.70W

B + G ON = Cyan 0.70W

R + G ON = Yellow 0.70W

B + R+G ON = White 1.05W

When the output is 12V, the power and current of the LED:

B ON = Blue 0.35W, 0.03A

R ON = Red 0.35W, 0.03A

G ON = Green 0.35W, 0.03A

B + R ON = Purple 0.70W, 0.06A

B + G ON = Cyan 0.70W, 0.06A

R + G ON = Yellow 0.70W, 0.06A

B + R+G ON = White 1.05W, 0.09A

Package Included

2 or 4PCS x RGB LED lights board ( send as your choice)

2 or 4PCS x 300mm red / balck wire

Features:

1. The parcel comes with a 30cm black and red power wire. User can cut it to the proper length according request.

2. Pay attention to the "+" and "-" and insulation

3. Toggle the switch on to different channel to choose 7 color

4. We suggest use double side tape to paste the LED lights on frame
