FrSky Gas Suite Sensor Smart Port and Telemetry Data Transmission

Description:

Brand name: FrSky

Item name: Gas Suite

Weight: 19g

Dimension: 40*28.8*12.7mm (L*W*H)

Operating Voltage Range: 4.0V~10V

Measured Range of Speed: 100~100000r/min (Degree of Accuracy: ±2%)

Measured Range of Flow Velocity: 20~800ml/min (Degree of Accuracy: ±2%)

Measured range of temperature:

TEMP1: PT100: -20℃~ 310℃, Degree of accuracy: ±1%

TEMP2: NTC: -20℃~ 250℃, Degree of accuracy: ±1%

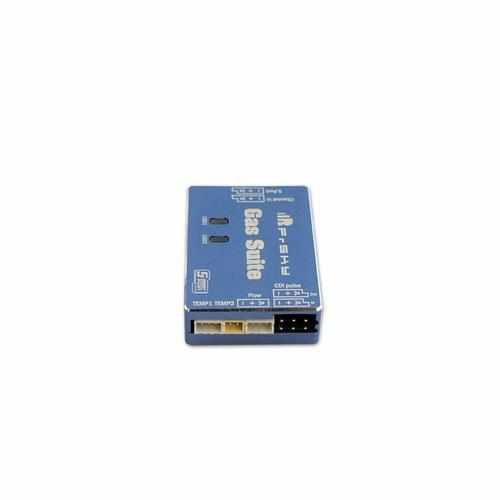

Physical interface: Temp1 & 2, FLOW, CDI pulse In & Out, Channel In, Smart Port

Features:

Monitor in real-time environment temperature and operating temperature of the engine.

Monitor in real-time RPM and the gas flow velocity

Smart Port enabled and support telemetry data transmission

Enable and disable the ignition control system manually

Parameters (Initial quantity of gas, alarm values and etc.) configuration through transmitters and FreeLink (PC)

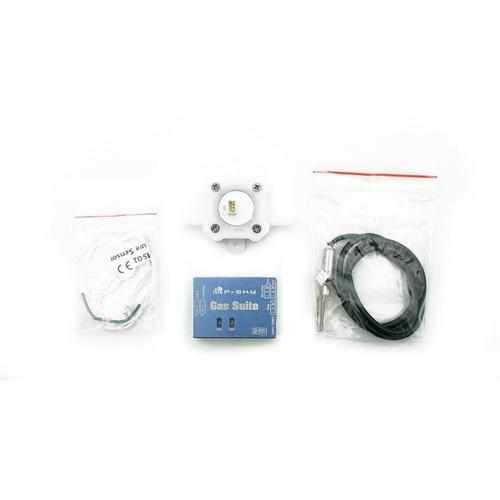

Package Included:

1x FrSky Gas Suite
