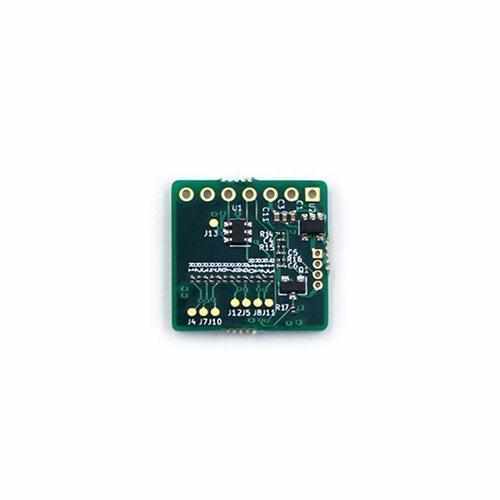

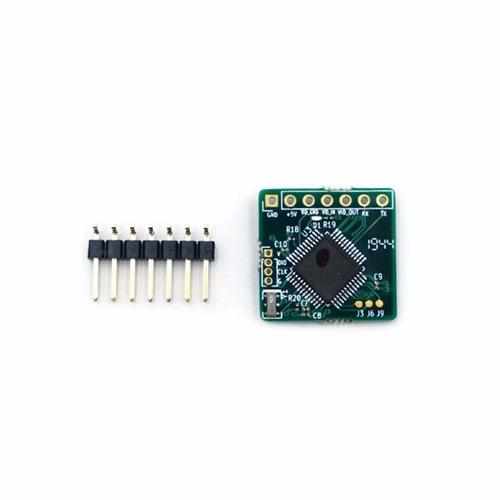

Frsky OSD/OSD Mini Board for RC Drone

$92.00

Specifications Dimension(L*W*H): 19mm*18mm*3mm Weight: 1.5g Current Consumption: 38mA@5V Operating Voltage: 5V +5: VCC +5V VID_GND: Video GND VID_IN: Video input (To Camera) VID_OUT: Video output (To VTX) RX: To FC TX TX: To FC RX Includes 1 x FrSky OSD...

  • Availability: In Stock
Type

Specifications

Dimension(L*W*H): 19mm*18mm*3mm

Weight: 1.5g

Current Consumption: 38mA@5V

Operating Voltage: 5V

+5: VCC +5V

VID_GND: Video GND

VID_IN: Video input (To Camera)

VID_OUT: Video output (To VTX)

RX: To FC TX

TX: To FC RX

Includes

1 x FrSky OSD Board

FrSky Mini OSD Board

Specifications

Dimension(L*W*H): 7mm*7mm*2mm

Weight: 0.3g

Current Consumption: 35mA@3.3V

Operating Voltage: 3.3V

RX: To FC TX

TX: To FC RX

3.3V: VCC +3.3V

G: GND

VI: Video input (To Camera)

VO: Video output (To VTX)

Includes

1 x FrSky Mini OSD Board
