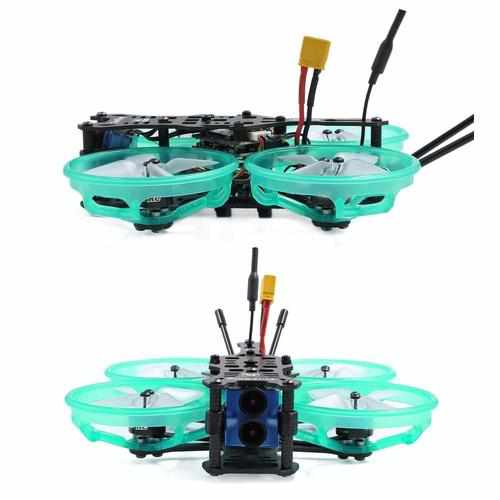

GEPRC CineKing 1103/1105 2S/3-4S FPV Cinewhoop Racing Drone

Features:

HD Video Recording: 4K@30fps, 2.7K@60fps, 1080P@90fps.

Dual Camera System: 1200TVL FPV camera of competition-level, low latency within 10ms.

WIFI/APP support: Video recording parameters are adjustable by WIFI/APP.

New Propeller Guard: Better airflow, higher flight efficiency.

Using STABLE F411 electronic system, which is very stable.

Full Soft Mounted FC System: Provides a clean operating environment for gyro.

Say Goodbye to Jelly: Stable video and comfortable FOV.

The newly designed GEP-CK2 frame has a more reasonable layout.

Aerial Photography Friendly: No sight of propellers and propeller protection frames in your video.

There are 2S and 4S versions to meet different flight requirements.

Taillight Design: Eye-catching night view and lighting effects.

Exquisite Assembly Process: Eliminate any potential installation problems.

Fine pre-tuned PIDs by GEPRC team, you can bind and fly.

Specifications:

Model:CineKing

Frame:GEP-CK2

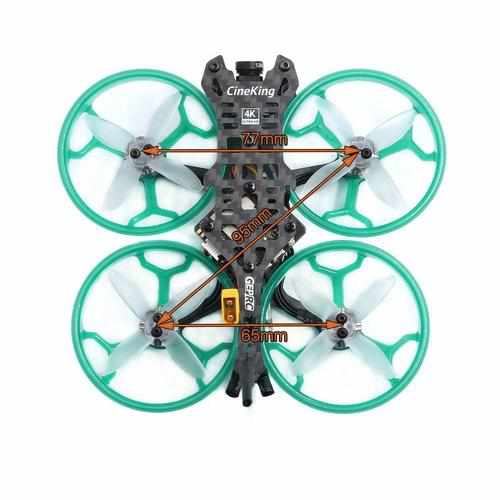

Wheelbase:95mm

FC:STABLE F411 SYSTEM

Camera:Caddx Tarsier 4K 1200TVL(V2)

Propeller:2inch

Receiver option:Frsky XM+/ Frsky R-XSR/ Frsky R9mm/TBS Nano SE/DSMX/Futaba/FlySky

CineKing 1103:

Motors:GR1103 8000KV

Recommend battery:2S 650mAh Battery

Weight:2S version 88g(Without battery)

CineKing 1105:

Motors:GR1105 5000KV

Recommend battery:3-4S 450-550mAh Battery

Weight:4s version 98g(Without battery)

STABLE F411 Micro System:
STABLE F411 Flight Controller(16*16mm)

MCU: STM32F411

IMU: MPU6000 gyro/accelerometer (SPI)

OSD: BetaFlight OSD w/ AT7456E chip

BEC Output: 5V@2A

Size: 21mm*21mm

Mounting holes: 16mm*16mm

Integrated LC Filter

Input voltage 2-4S LIPO

Firmware target: MATEKF411

STABLE F411 BLheli_S 4IN1 12A ESC(16*16mm)

MCU: BB21F16G

Continuous current: 12A

Input voltage : 2-4S LIPO

ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.

Size: 23mm*21mm

Mounting hole 16*16mm

Firmware target: Blheli_S G_H_30

Current meter: 210

STABLE F411 VTX 5.8G 200mW(16*16mm)

Power : PIT/25/100/200mW

Antenna interface : IPEX (UFL)

Telemetry: IRC Tramp

Size: 17mm*27mm

Mounting holes: 16*16mm

Integrated LC Filter

Include:

-1 x CineKing Quadcopter
