Iflight Alpha A65 SucceX-1S F4 AIO XING 0802 Tinywhoop Duct Drone

PRODUCT DESCRIPTION
Let's welcome the iFlight Alpha series, a new way to fly FPV. This Alpha A65 is a Classical size of 65mm and light weight in 24.5g only. This is what we came up with to combine flight time efficiency with sufficient power.

FEATURES:

24.5 grams (without battery)

Butter smooth XING 0802 (more torque and efficiency with longer flight times)

Ducts to protect the sensitive environment or yourself

Pre-tuned with smooth cinematic settings

Alpha A65 w/199C Camera BNF Specs:

SucceX-1S 5A Whoop F4 AIO Board w/VTX

XING 0802 FPV Micro Motor

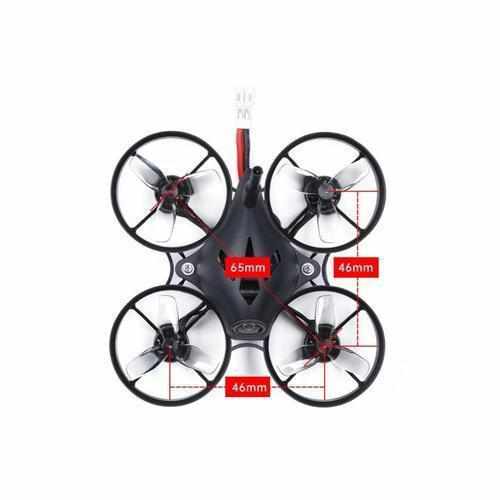

Wheelbase: 65mm

Body size: 46*46mm

Ducted propeller size: 31mm

FC pattern: 25.5*25.5mm

Weight: 24.5g (without battery)

Flight time: 3-4 min cruising (1S 300mAh)

FACTORY SETUP and WIRING DIAGRAM:

This BNF comes pre-built and setup with all necessary parameters to bind-and-fly. We also added a basic filter and PID tuning as well

as some Betaflight tweaks to enhance the flight experience.

Reflashed your drone but didn't backup the setup? Messed up the whole tune and want our factory tune back?

No need to worry! All Factory Dumps and Wiring Diagrams can be found on our Google Drive: LINK

Alpha A65 w/199C Camera Quad BNF Included Components and Parts

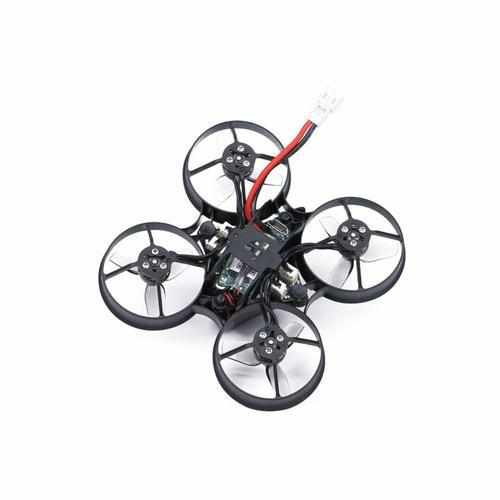

Prebuilt and tested Quadcopter

1x Alpha 65mm Frame

1x 199C Camera

1x SucceX-1S Whoop F4 AIO Board w/VTX

1x Whip antenna
2sets HQ 31mmx3 1mm (Set of 4 - Color May Vary)

FC // SucceX-1S Whoop AIO Board

Size:29*29mm

Mounting pattern: 25.5*25.5mm/φ3mm (half-hole)

Connector:Micro-USB

Weight: 5.4g (with power cable, vtx, and vtx antenna)

MCU:STM32F411

Gyro:MPU6000

Blackbox:no

BEC output:5V 1.2A

INA pad:n uart2

Barometer:no

FC Firmware:MatekF411RX

ESC Firmware:O-H-30 BLS 16.8

ESC // 5A

Current: 5A continuous and peak 6A

Current scale: 400

Input:1S

Signal Support: Dshot,Oneshot,Multishot

Current sensor:yes

BLHeli:BLHeli-S

ESC Telemetry:no

VTX:

Input voltage: 5V

Channels: 48CH

Power: PIT/25/50mW

Connector:UFL/IPEX
