5G Modem Carrier Board, USB HUB, I/O Breakout for VOXL 2

$459.00

5G Modem Carrier Board and USB Hub- Enable the power of 5G on your Drone or Robot with additional I/Os and USB This 5G modem carrier board is offered in a stand alone and add-on version. As a standalone modem,...

  • Availability: In Stock
Size

5G Modem Carrier Board and USB Hub- Enable the power of 5G on your Drone or Robot with additional I/Os and USB

This 5G modem carrier board is offered in a stand alone and add-on version. As a standalone modem, this board can be used as a 5G base station! As an add-on version, this board attaches directly to VOXL 2 and RB5 Flight via a high speed board to board connector to enable 5G communications. Compatible only with the Quectel 5G RM502Q-AE modem which must be purchased separately. Data sheet for the modem can be found here.

Ready to Use Development Tools

Product Specifications:

  • M2.e Card Slot
  • USB 2.0 Hub
  • USB 3.0 Hub
  • Fastboot switch
  • (2) SPI
  • (2) I2C

Software Specifications:

  • Works with voxl-modem

Technical Details

Datasheet

User Guide

What's Included

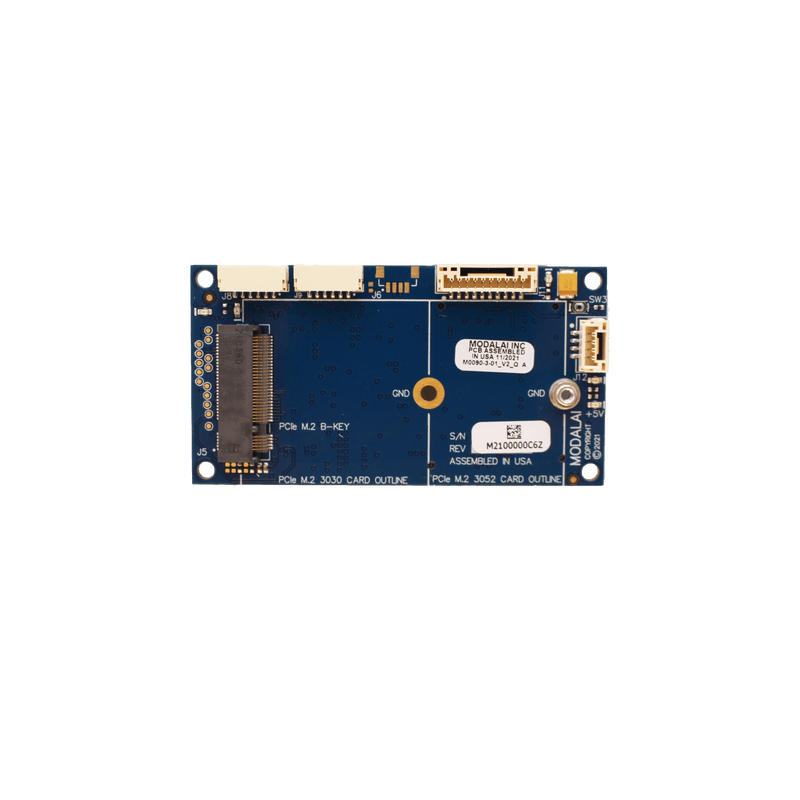

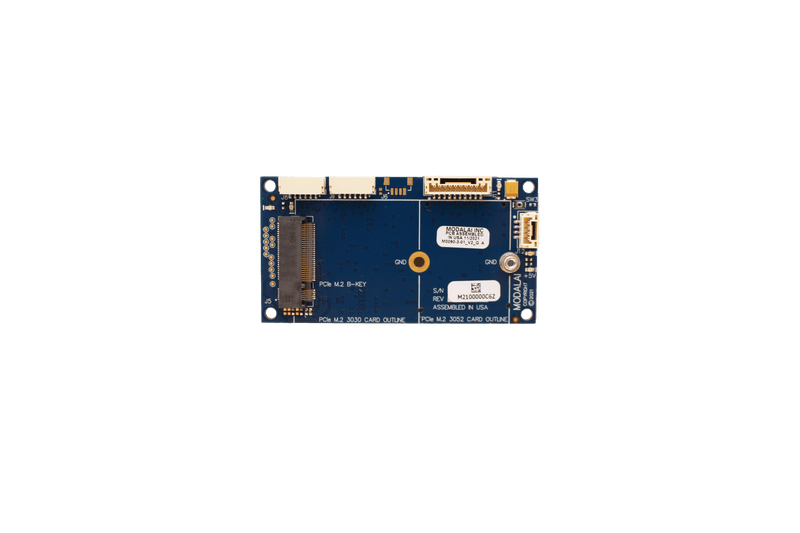

Carrier Board Only (Modem Not Included)

  • (1) MCCA-M0090-3-01 :  VOXL2 5G Modem Carrier Board, Add On, Board Only

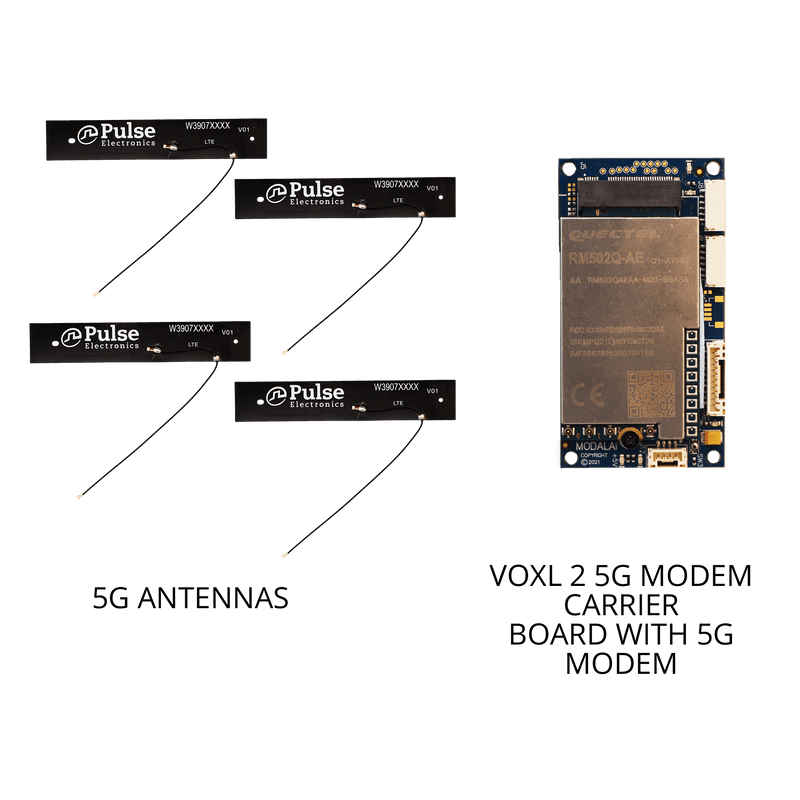

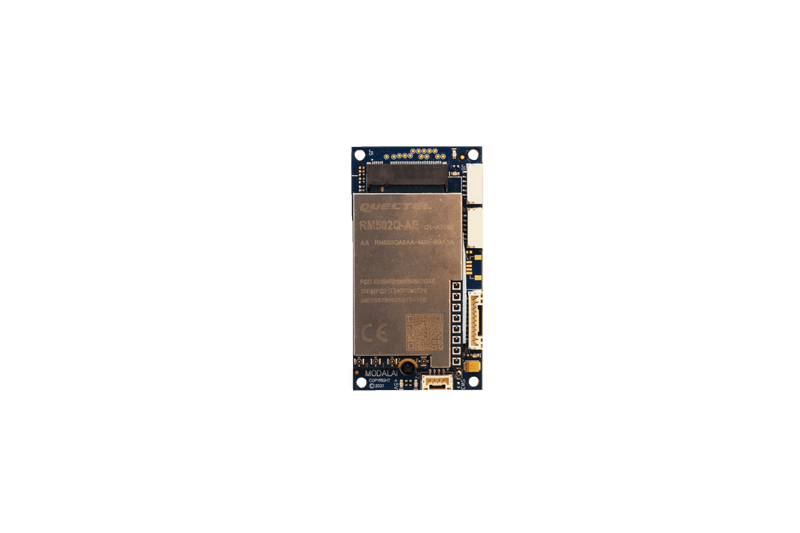

    Carrier Board with 5G Modem and Antennas

    • (1) MCCA-M0090-3-01 :   VOXL2 5G Modem Carrier Board, Add On, Board Only
    • (1) M10000078: Quectel Model RM502QAEAA-M20-SGASA 5G modem
    • (1) M10000105: 30x30x3mm Thermal Pad
    • (1) M10000106: M2X3mm Screw to secure modem to carrier board
    • (4)MRF-M0067-2:  Pulse LTE 698-3600MHz FPC Antenna (p/n W3907XXXX)

    Additional Items Not Included

    • Quectel 5g Modem here (not included in Carrier Board Only Kit)
    • JST to USB Cable [MCBL-M0009-1] here

    Compatible Products

    Product Compatible?
    VOXL ❌
    VOXL Flight
    VOXL 2
    Qualcomm Flight RB5 5G
    Sentinel
    VOXL 2 Flight Deck



      ModalAI Part Numbers

       MPN Description
      MDK-M0090-3-01-00
      Dev Kit, VOXL2 5G Modem Carrier Board
      MDK-M0090-3-01-02 Dev Kit, VOXL2 5G Modem Carrier Board with 5G Modem and (4) antennas
