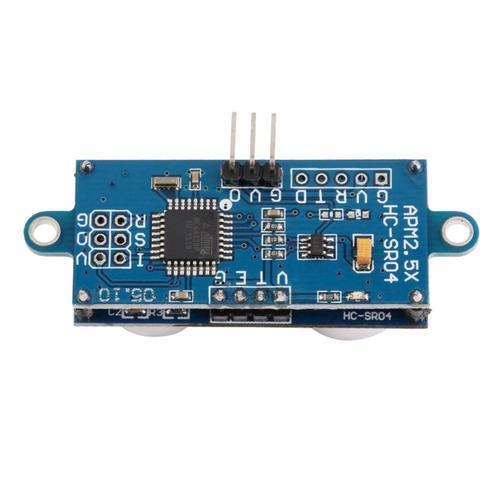

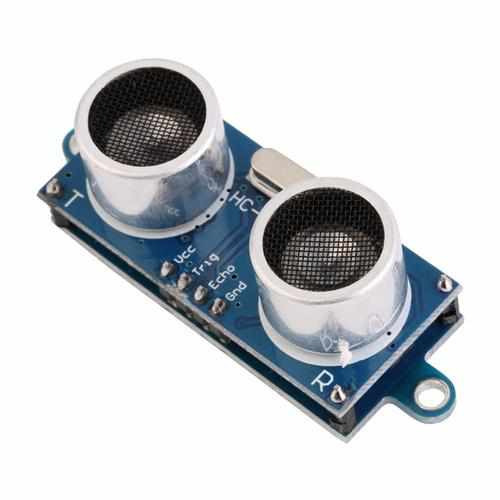

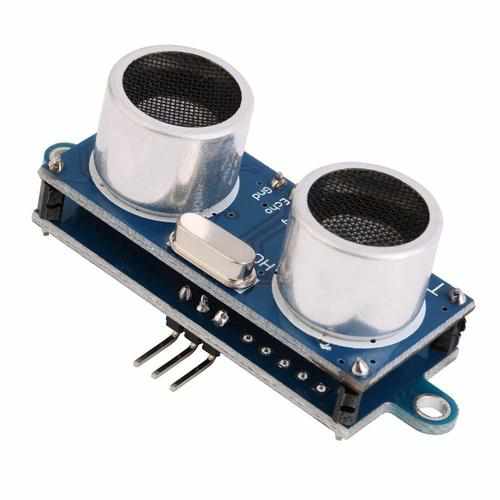

Ultrasonic Wave Detector Ranging Module

Features:

100% brand new and high quality

APM2 ultrasonsonic module, do not need to modify APM software

With installation hole for fixation

This module can replace XL-EZ0

The module A0 is connected to flight control A0, GND VCC can be directly connect with flight control board

Detection range: 20cm-300cm

Usage:

Supported Sonars

Building a cable to reduce sonar noise

Connecting the Sonar Sensor on APM 2.x

Connecting the Sonar Sensor on PX4

Mounting the Sonar Sensor

Enabling the Sonar through Planner

Testing the sonar

Tuning the gain

Sonar Maximum Altitude

Cold weather performance

Other Potential Causes of Sonar Noise

Specifications:

Size: 45mm*25mm*20m

Net Weight::17g

Package includes:

Ultrasonic module x 1

Connecting cable x 1

Installation spacer x 2
