VOXL® 2
$2,040.00
VOXL® 2 Next Generation Blue UAS 2.0 Autonomous AI Autopilot VOXL 2 is the next generation Blue UAS Framework autopilot powered by Qualcomm Flight™ RB5. At only 16g, VOXL 2 is the smallest single-board AI autopilot to date with premium...
- Availability: In Stock
VOXL® 2 Next Generation Blue UAS 2.0 Autonomous AI Autopilot
VOXL 2 is the next generation Blue UAS Framework autopilot powered by Qualcomm Flight™ RB5. At only 16g, VOXL 2 is the smallest single-board AI autopilot to date with premium tier processing from the Qualcomm QRB5165, a PX4 flight controller, advanced onboard AI up to 15+ TOPS and 5G connectivity
Ready to Use Development Tools
VOXL 2 Features

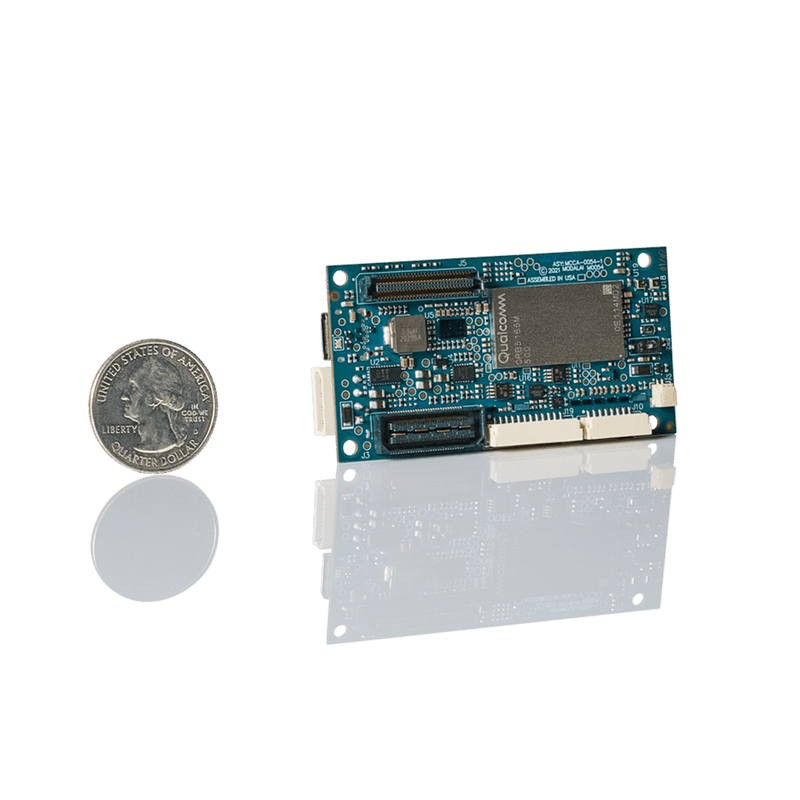

- 16 grams, 70x36mm SWAP-optimized design
- Powered by Qualcomm® QRB5165: 8 cores up to 3.091 GHz, 8GB LPDDR5
- 15 TOPS AI embedded Neural Processing Unit (NPU)
- Integrated flight controller on DSP with TDK® ICM-42688 IMU and ICP-10111 Barometer
- 5G, 4G/LTE, WiFi, Microhard add-on connectivity
Software Features
- PX4, ROS 1 / 2, Ubuntu 18.04, Open CV, MAVROS, MAVSDK
- Open Source Linux kernel, cross-compilers
- Docker build environment for CPU, GPU (OpenCL) and DSP (Hexagon SDK) heterogeneous computer vision and deep learning processing
Technical Details
Product Brief + System Architecture
VOXL 2 Development Kit Details

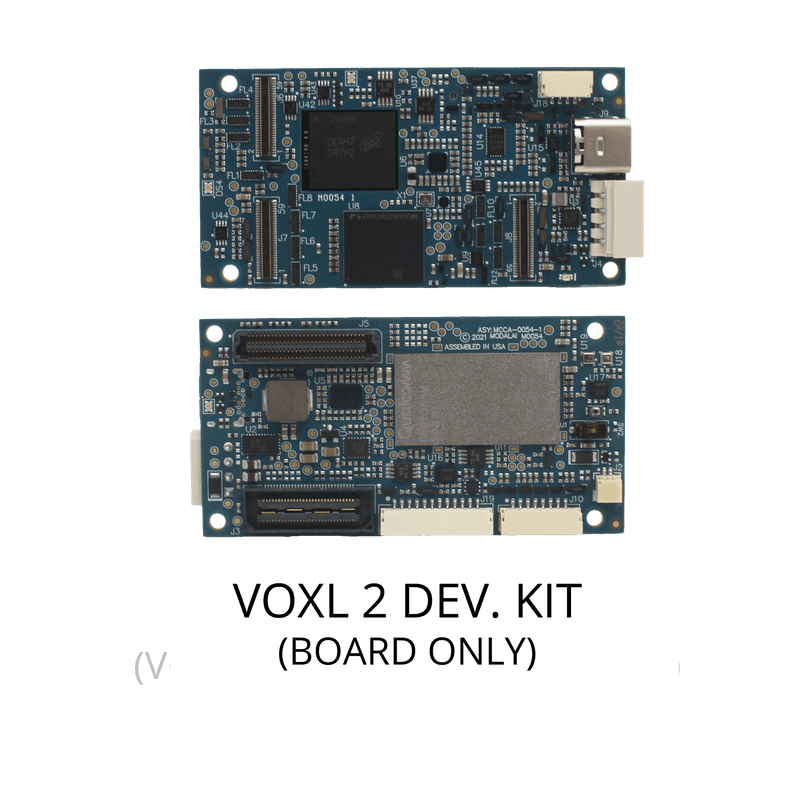

MDK-M0054-1-00 VOXL 2 Dev Kit, Board Only
What is Included:
| Quantity | SKU | Description |
| 1 | MCCA-M0054-1-T | CCA, VOXL 2, Tested |
MDK-M0054-1-01 VOXL 2 Dev Kit, No Image Sensors
What is Included:
| Quantity | SKU | Description |
| 1 | MCCA-M0054-1-T | CCA, VOXL 2, Tested |
| 1 | MDK-M0041-1-B-01 | VOXL Power Module v3 RevB Kit |
| 1 | MPS-00005-1 | Power Supply, 12V 3A, XT60 |
MDK-M0054-1-01-C3 VOXL 2 Dev Kit, 4 Image Sensors
Camera Config C3 (front stereo, tracking, hires)
What is Included:
| Quantity | SKU | Description |
| 1 | MCCA-M0054-1-T | CCA, VOXL 2, Tested |
| 1 | MDK-M0041-1-B-01 | VOXL Power Module v3 RevB Kit |
| 1 | MPS-00005-1 | Power Supply, 12V 3A, XT60 |
| 1 | MCCA-M0076-1 | CCA, VOXL2 1.2V DF40C to VOXL AXT, No Regs |
| 1 | MSU-M0014-1-01 | Tracking Image Sensor Kit (7251-A36) (M0014) |
| 1 | MSU-M0015-1-01 | Stereo Image Sensor Pair and Flex Cable Kit (7251-A50) |
| 1 | MSU-M0025-2-01 | Hires Sensor, IMX214, 6-10M focal length, 85 degree FOV, Tested and Focused |
| 1 | OEM-M0074-1-01 | 60MM Image Sensor Extension Flex Cable |
| 1 | OEM-M0084-1 | Dual Image Sensor Adapter Flex Cable |

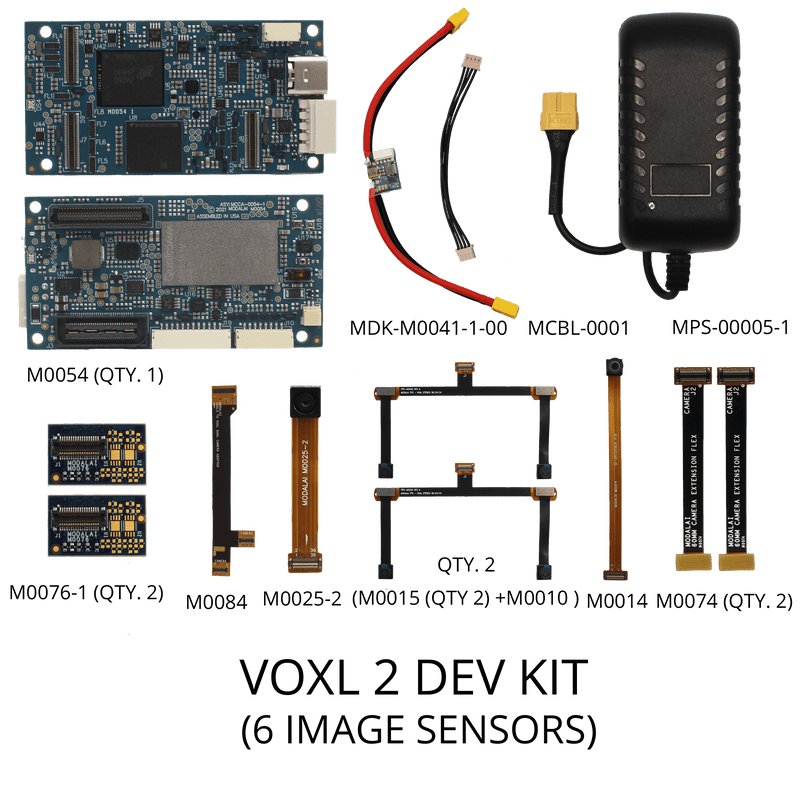

MDK-M0054-1-01-C11 VOXL 2 Dev Kit, 6 Image Sensors
Camera Config C11 (front/rear stereo, tracking, hires)
What is Included:
| Quantity | SKU | Description |
| 1 | MCCA-M0054-1-T | CCA, VOXL 2, Tested |
| 1 | MDK-M0041-1-B-01 | VOXL Power Module v3 RevB Kit |
| 1 | MPS-00005-1 | Power Supply, 12V 3A, XT60 |
| 2 | MCCA-M0076-1 | CCA, VOXL2 1.2V DF40C to VOXL AXT, No Regs |
| 1 | MSU-M0014-1-01 | Tracking Image Sensor Kit (7251-A36) (M0014) |
| 2 | MSU-M0015-1-01 | Stereo Image Sensor Pair and Flex Cable Kit (7251-A50) |
| 1 | MSU-M0025-2-01 | Hires Sensor, IMX214, 6-10M focal length, 85 degree FOV, Tested and Focused |
| 2 | OEM-M0074-1-01 | 60MM Image Sensor Extension Flex Cable |
| 1 | OEM-M0084-1 | Dual Image Sensor Adapter Flex Cable |
Please see our handling instructions for best practices on handling your device.
