VOXL® 2 Flight Deck
$3,740.00
VOXL® 2 Flight Deck with VOXL 2 Next Generation Blue UAS 2.0 Autonomous AI Autopilot Build your own drone with this pre-built and calibrated Flight Deck! VOXL 2 Flight Deck is our most advanced flight deck to date featuring VOXL 2. VOXL 2...
- Availability: In Stock
VOXL® 2 Flight Deck with VOXL 2 Next Generation Blue UAS 2.0 Autonomous AI Autopilot
Build your own drone with this pre-built and calibrated Flight Deck! VOXL 2 Flight Deck is our most advanced flight deck to date featuring VOXL 2. VOXL 2 is the next generation Blue UAS Framework autopilot. At only 16g, VOXL 2 is the smallest single-board autopilot to date with premium tier processing from the Qualcomm® QRB5165, a PX4 flight controller, advanced onboard AI and 5G connectivity.
Ready to Use Drone Development Tools
Powered by VOXL 2
- 16 grams, 70x36mm SWAP-optimized autopilot
- Powered by Qualcomm QRB5165: 8 cores up to 3.091 GHz, 8GB LPDDR5
- 15 TOPS AI embedded Neural Processing Unit (NPU)
- Integrated flight controller on DSP with TDK ICM-42688 IMU and ICP-10111 Barometer
- 5G, WiFi, Microhard add-on connectivity options
Other Hardware

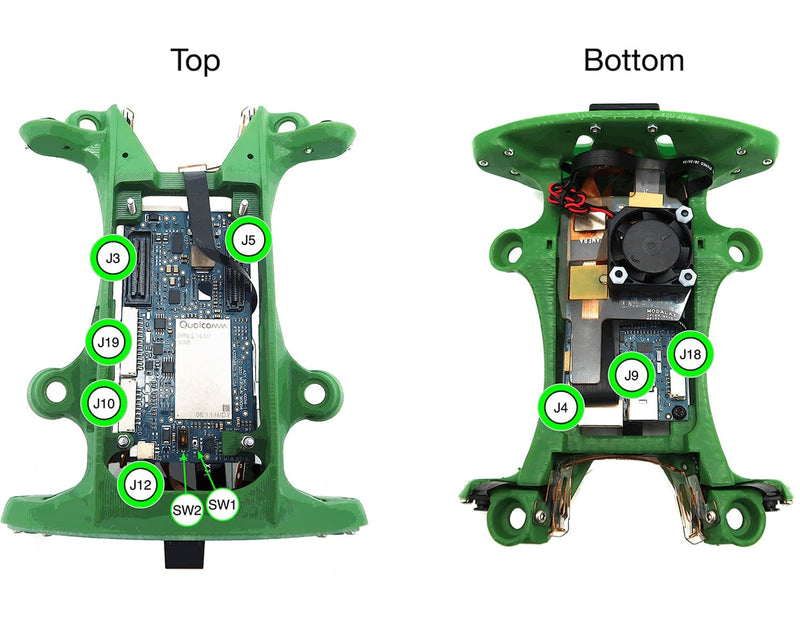

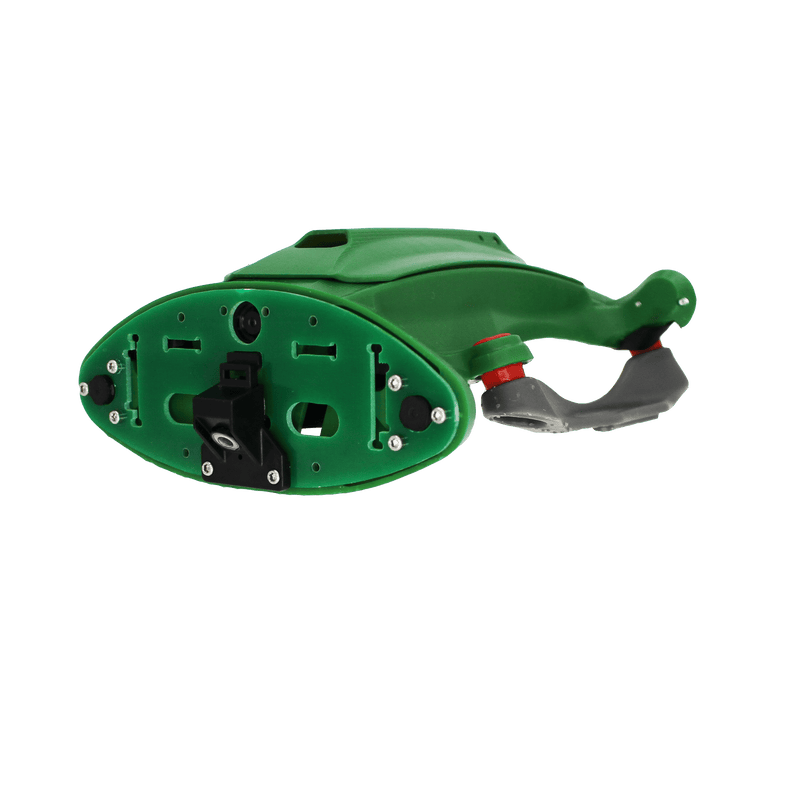

- Custom Flight Deck with pre-calibrated cameras
- Vibration dampeners that have been flight tested to maximize VIO performance
- Mounting feet with integrated dampeners for securing the flight deck to your own airframe
Wireless Options
- 5G LTE Modem with USB Hub
- 2.4/5ghz WiFi Modem
- Microhard Carrier Board with USB Hub (Options for 1.8/2.3 or 2.4ghz)
Software Features
- PX4, ROS 1 / 2, Ubuntu 18.04, Open CV, MAVROS, MAVSDK
- Open Source Linux kernel, cross-compilers
- Docker build environment for CPU, GPU (OpenCL) and DSP (Hexagon SDK) heterogeneous computer vision and deep learning processing
VOXL 2 Flight Deck Kit Details
What is Included in all MDK-F0006-1 models:
| Quantity | SKU | Description |
| 1 | MCCA-M0054-1 | VOXL2 |
| 1 | MDK-M0041-1-B-01 | VOXL Power Module v3 RevB Kit |
| 1 | MCCA-M0076-1 | VOXL2 1.2V DF40C to VOXL AXT, No Regs |
| 1 | MSU-M0014-1-01 | Tracking Image Sensor Kit (7251-A36) (M0014) |
| 1 | MSU-M0015-1-01 | Stereo Image Sensor Pair and Flex Cable Kit (7251-A50) |
| 1 | MSU-M0109-1-01 | Stereo Image Sensor Pair and J Flex Cable Kit (7251-A50) |
| 1 | MSU-M0025-2-01 | Hires Sensor, IMX214, 6-10M focal length, 85 degree FOV, Tested and Focused |
| 2 | OEM-M0074-1-01 | 60MM Image Sensor Extension Flex Cable |
| 1 | OEM-M0084-1 | Dual Image Sensor Adapter Flex Cable |

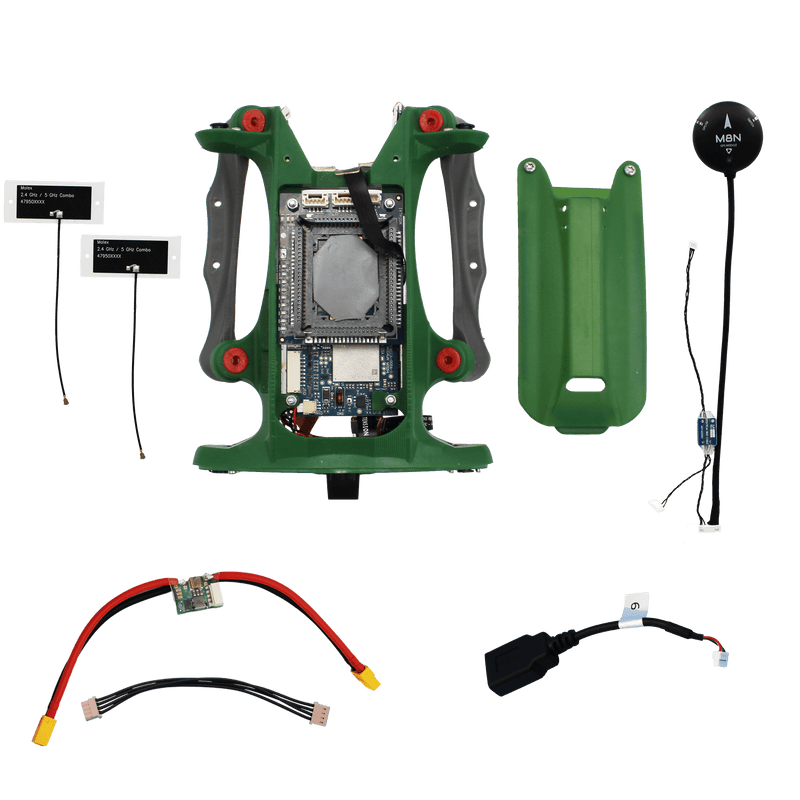

In addition, below is included in the -01 Microhard model:
| Quantity | SKU | Description |
| 1 | MCCA-M0048-1 | VOXL Microhard v2 Add-On |
| 1 | MCBL-00009-1 | JST to USB Type A |
| 2 | MRF-M0019-1 | 2.4/5ghz Wifi Antennas |

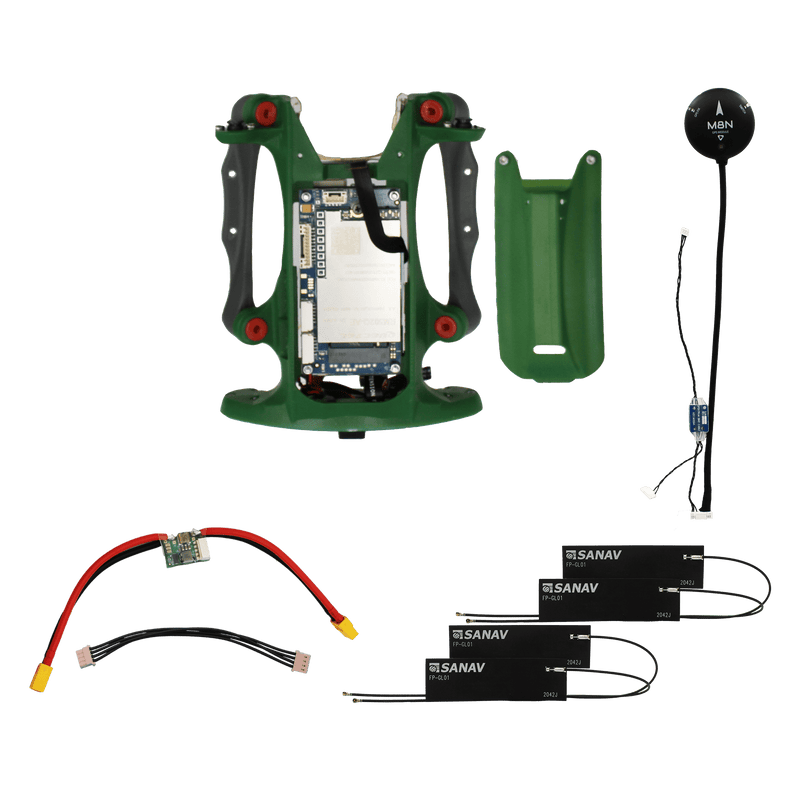

In addition, below is included in the -02 5G LTE model:
| Quantity | SKU | Description |
| 1 | MCCA-M0090-3-01 | VOXL2 5G Modem, Add On, Quectel |
| 1 | M10000078 | Quectel Modem MODEL RM502Q-AE |
| 1 | M10000105 | Thermal Pad |
| 4 | MRF-M0067-1 | Sanav 5G Antennas |
| 1 | MCBL-00009-1 | USB Type A cable (60mm) |

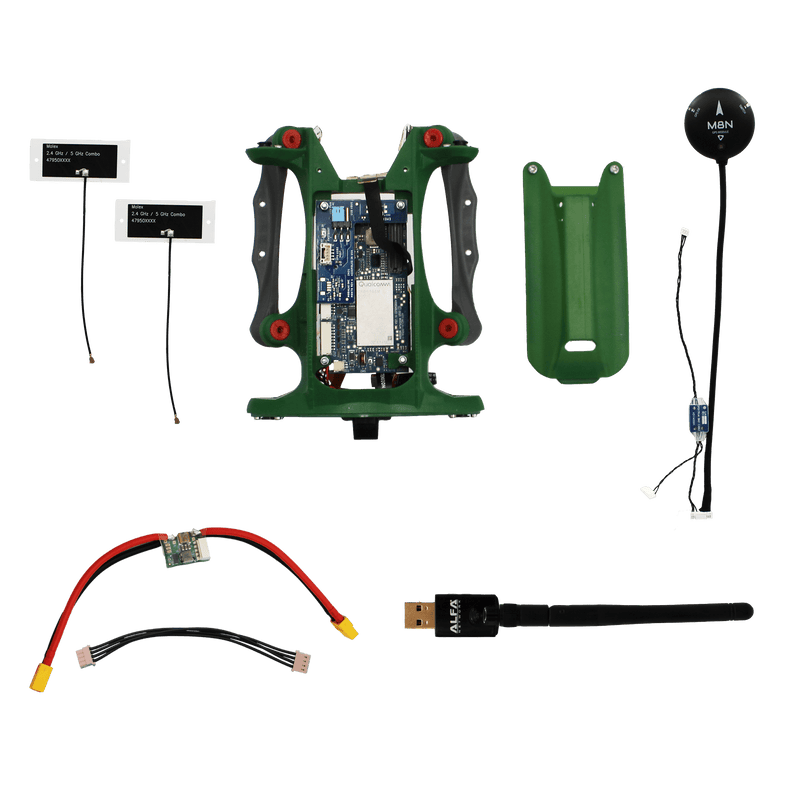

In addition, below is included in the -03 WiFi model:
| Quantity | SKU | Description |
| 1 | MCCA-M0078-2 | VOXL 2 USB Debug, USB/Fastboot, Add On |
| 1 | M10000270 | Alfa Network AWUS036ACS 802.11ac AC600 Wi-Fi Wireless Network Adapter |
| 1 | MCBL-00041-1 | USB Type A cable (150mm) |
Technical Details
Product Brief and Block Diagram
Documentation
VOXL 2 Feature Matrix
Compatibile Accessories
Model Numbers
| SKU | Description | Status |
| MDK-F0006-1-01
|
Flight Deck Development kit, uses the VOXL 2 board | Active |
HS Code: 8542.31.3000
