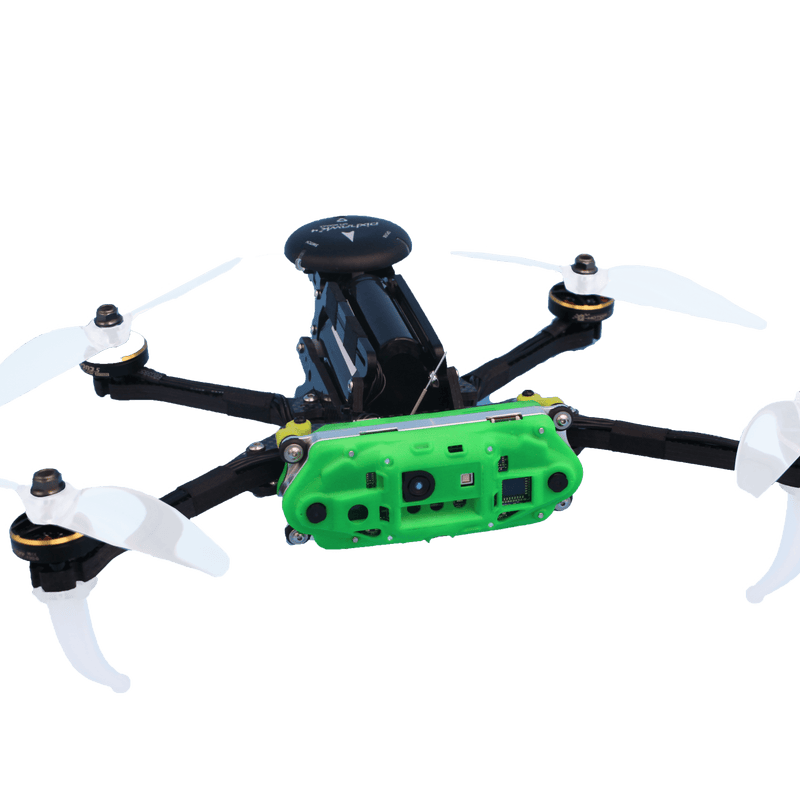

Seeker SLAM Development Drone
$5,100.00
The world's first SLAM development drone with SWAP-optimized sensors and payloads optimized for indoor and outdoor navigation. Smart Autonomy Best-in-Class Software Features Powered by VOXL companion computer Integrated Qualcomm Snapdragon 821 premium tier chipset onboard: 4 cores up to 2.4...
- Availability: In Stock
The world's first SLAM development drone with SWAP-optimized sensors and payloads optimized for indoor and outdoor navigation.
Smart Autonomy
Best-in-Class Software Features
- Powered by VOXL companion computer
- Integrated Qualcomm Snapdragon 821 premium tier chipset onboard: 4 cores up to 2.4 GHz, 14nm, 4GB LPDDR4 PoP 1866MHz
- VOXL 4-in-1 ESC
- Open source software: Open CV, ROS, Docker, PX4
- Optional 4G for cellular carrier based networks
Powered by VOXL CAM Perception Engine
- PMD Time of Flight (ToF) module for indoor depth mapping
- LiDAR-like data in the forward direction
- 224 x 171 (38k) px
- FOV (H x V) 117° x 117° (near field 100° x 80°)
- Stereo Image Sensor pair for outdoor depth mapping
- Tracking Image Sensor for Visual Inertial Odometry localization
The Seeker is built to order and typically ships within 10 business days from purchase.
Smaller Design
Designed to Navigate Small Spaces Safely with SLAM
The Seeker is 550g and boasts up to ~27 minutes of flight time. The carbon air frame, self-contained VOXL CAM, and tilted rotors make it perfect to navigate through tunnels, scaffolding, bridges, and more.
- 550g
- 270mm diagonal
Technical Documentation
What's Included
- MRB-D0003-1 Seeker Drone (multiple configurations listed below)
- MRP-D0003-1-00 Propellers
- MRP-D0003-2-00 Landing Gear
Seeker Configurations
- Weight: ~550g w/ Battery
- Perfect for outdoor autonomous flight
- Includes VOXL CAM Core w/ Flight Controller Web Link
- Integrated ModalAI Flight Core for PX4 Web Link
- ModalAI 4 in 1 ESC Web Link
- ModalAI APM (Advanced Power Module) Web Link
- Integrated 4G LTE Modem with Antennas
- Options for North America and Europe
| SKU | Description |
|
MRB-D0003-1-V1.1-B1-C3-D1-T1-K0
|
Seeker (Stereo, Tracking, 4k) with USB Add-on and Spektrum SPM9X45 Receiver |
| MRB-D0003-1-V1.1-B1-C3-D1-T3-K0 | Seeker (Stereo, Tracking, 4k) with USB Add-on and FrSky R-XSR Receiver |
| MRB-D0003-1-V1.1-B1-C3-M8-T1-K0 | Seeker (Stereo, Tracking, 4k) with LTE Modem (North American Carriers) and Spektrum SPM9X45 Receiver |
| MRB-D0003-1-V1.1-B1-C3-M8-T3-K0 | Seeker (Stereo, Tracking, 4k) with LTE Modem (North American Carriers) and FrSky R-XSR Receiver |
| MRB-D0003-1-V1.1-B1-C3-M12-T1-K0 | Seeker (Stereo, Tracking, 4k) with LTE Modem (EMEA Carriers) and Spektrum SPM9X45 Receiver |
| MRB-D0003-1-V1.1-B1-C3-M12-T3-K0 | Seeker (Stereo, Tracking, 4k) with LTE Modem (EMEA Carriers) and FrSky R-XSR Receiver |
| MRB-D0003-1-V1.1-B1-C7-D1-T1-K0 | Seeker (TOF, Stereo, Tracking) with USB Add-on and Spektrum SPM9X45 Receiver |
| MRB-D0003-1-V1.1-B1-C7-D1-T3-K0 | Seeker (TOF, Stereo, Tracking) with USB Add-on and FrSky R-XSR Receiver |
| MRB-D0003-1-V1.1-B1-C7-M8-T1-K0 | Seeker (TOF, Stereo, Tracking) with LTE Modem (North American Carriers) and Spektrum SPM9X45 Receiver |
| MRB-D0003-1-V1.1-B1-C7-M8-T3-K0 | Seeker (TOF, Stereo, Tracking) with LTE Modem (North American Carriers) and FrSky R-XSR Receiver |
| MRB-D0003-1-V1.1-B1-C7-M12-T1-K0 | Seeker (TOF, Stereo, Tracking) with LTE Modem (EMEA Carriers) and Spektrum SPM9X45 Receiver |
| MRB-D0003-1-V1.1-B1-C7-M12-T3-K0 | Seeker (TOF, Stereo, Tracking) with LTE Modem (EMEA Carriers) and FrSky R-XSR Receiver |
Additional Components
Required components sold separately:
- R/C Transmitter
- Default configuration works with Spektrum RC transmitter (e.g. SPM8000 or SPMR8000)
- Details on other R/C options in our technical documentation
- Lithium Ion Battery (Buy Here)
