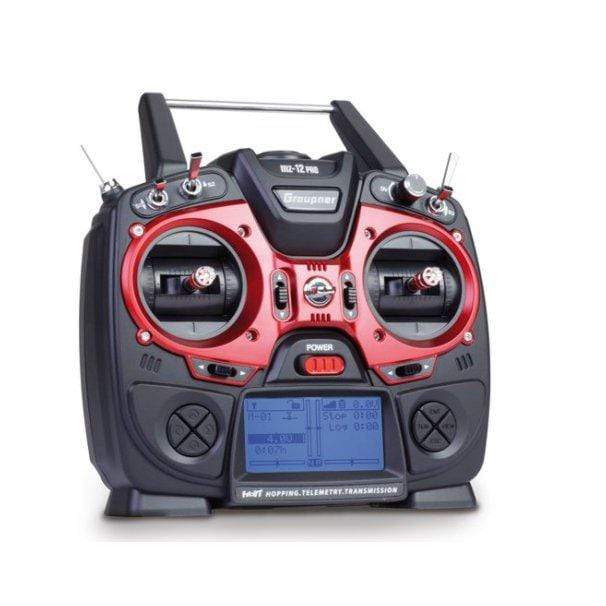

Graupner mz-12 PRO 12 Channel R/C Transmitter - NDAA Compliant

NDAA Compliant option to manually control a VOXL m500 drone

The Graupner mz-12 PRO is raising the bar for any radio in its price range. With 12 channels, 250 model memories, 5 model types, real-time voice telemetry, user announcements and 1500 mAh LiPo battery the mz-12 PRO is setting a new standard in value and performance!

• 12 radio channels and 250 model memories
• Quad bearings gimbals for smooth operation
• Integrated long range antenna
• Microcomputer radio 2.4 GHz radio utilizing Graupner HoTT technology
• Use of up to 75 frequency-hopping channels to ensure operating reliability
• Removeable 1500mAh LiPo rechargeable battery
• Battery charging indicator when charged with included USB cable
• Bidirectional communication between transmitter and receiver
• Fast 10ms frame rates when used with digital servos
• Wireless or wired Teacher/Student link (buddy boxing)
• Micro USB Joystick function for flight simulator training
• Model types: Airplane, Helicopter, Multirotor, Boat and Car
• Supports 5 different languages ??(German, English, French, Italian and Spanish)
• Model memories can be stored and retrieved from computer
• Intuitive operation and programming
• HoTTSync for exclusive and safe model operation
• Airplane Wing Types: 1AI, 1AI-1FL, 2AI, 2AI-1FL, 2AI-2FL
• All switches and controls are user assignable
• Radio Switches: 2 x 3-position switches, 1 x 2 position spring loaded switch, 2 x 2 position switch, 1 analog rotary knob
• Mode 1 to 4 freely selectable
• Key-lock function against unintended operation.
• 2 programmable flight phases
• Helicopter Swash plate limiter
• Dual Rate and Expo individually adjustable and switchable during the flight
• Wing mixers (aileron/flaps differential), (aileron rudder/flaps mixer), (elevator flap/aileron mixer), (flap elevator/aileron mixer)
• Multi point throttle curve in all model modes
• Free assignable mixers functions (5 linear mixers and 4 curve mixers)
• Programmable fail-safe function "Hold" or "Move to preset positions" can be set separately for each individual servo channel
• Stopwatches / Countdown timer with alarm function
• Model copy function for model memory
• Supported data formats on the DSC port: Telemetry, Bluetooth, CROSSFIRE V2 unidirectional

What's Included

• mz-12 PRO 12 channel radio (red)
• 1500 mAh LiPo battery 5.55 Wh
• Micro USB cable
• Quick start manual part 1

ModalAI Part Numbers
