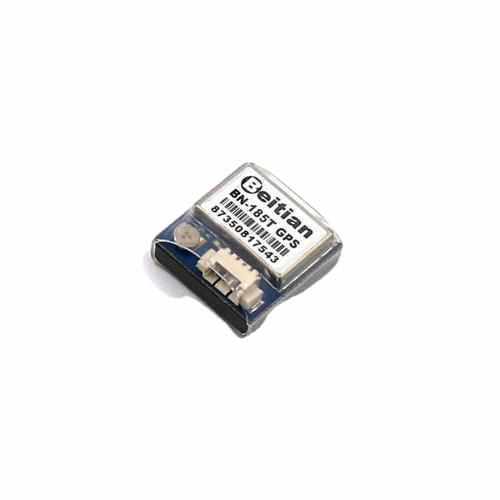

Beitian BN-185T BN185T GPS GLONASS Dual Module Datesheet w/ Cable

Specification:

Model:BN-185T

Chip: M8030-KT

Power Supply:DC Voltage 3.6V~5.5V,Typical: 5.0V

Consumption:Capture 50mA@5V

Receiving Format:GPS L1,GLONASS L1,Galileo E1, BDS B1, SBAS L1, QZSS L1

Receiving Channel:72 Searching Channel

Receiving Sensitivity:Trace -167dBm

Capture-160dBm

Positioning Time:Cold Start: 26s

Warm Start: 25s

Hot Start: 1s

Level Positioning Precison:2m CEP 2D RMS SBAS (At Open Wind)

Output Frequency: 1Hz-10Hz,Default 1Hz

Speed Precison:0.1 m/s 95% (SA off)

Acceleration Precison:0.1 m/s (Without Aid)

Dynamic Characteristics:Max Height: <50,000m

Max Speed: <515m/s

Max Acceleration: <4G

UART Interface:UART Port:TXDA and RXDA

Support Rate:4800bps to 921600bps,Default 9600dps

Flash: 4M flash

The Module's Pins: RX TX GND VCC

Working Temperature:-40℃-+85℃

Storage Temperature:-40℃-+105℃

Size:18.5mm x 18.5mm x 9.5mm

Weight: 8.1g

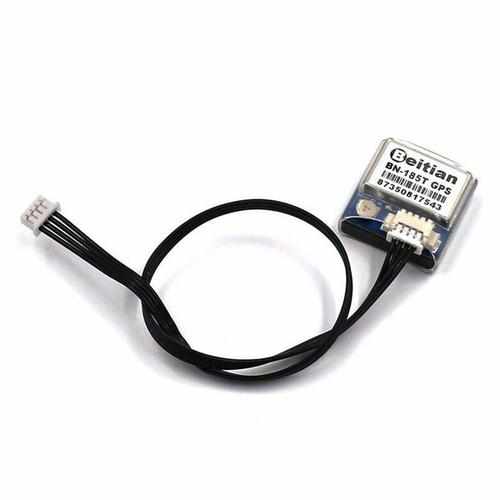

Package Included:

BN-185T GPS Module
ST-SH 1.25 4Pins 20cm Cable Wire
