FPV 5-10V Aerial Video Switcher

Specifications:

AV video switcher (2-way & 3-way optional)

Supply voltage: 5-10V

Input signal: Receiver PWM 1-2MS

Size: 16*16mm

Weight: 0.8g

Features:

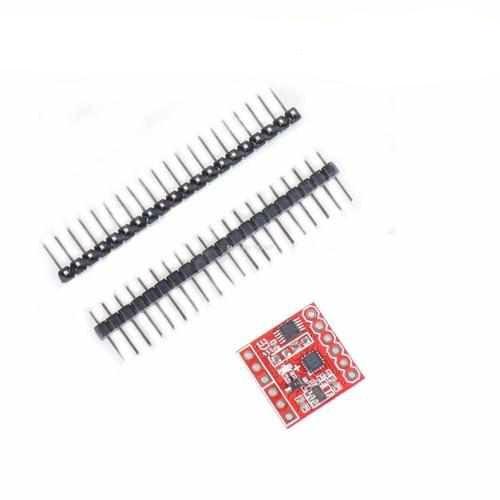

It is equipped with straight needles and curved needles when it is delivered. Users can weld them according to their actual conditions. They can also directly solder the wires to the module without pins, thus reducing the hidden troubles caused by poor contact.

Two (three) way electronic switch video switcher, which can control 2 (3) cameras or DV AV signals through the remote control.

Switch to the OSD or video transmitter separately to give your FPV a different angle of view.

Dedicated video switching IC, the picture quality is not lost, no switching life, and the internal resistance is ultra-small.

The switch can be used not only as a video switch, but also as an electronic switch, electronic ignition, shutter trigger, air switching, transmitter channel, etc., and can also be used as an electronic switch.

The video switcher can be connected to any channel of the receiver to use (PWM), actually using two (three) gear switches or knob channels to use

VIN1, VIN2 and VIN3 are 2 (3) video input terminals, VOUT is the video output terminal, PWM is connected to any channel of the receiver, VCC is connected to the receiver 5V (or external 5-10V), and GND is connected to the receiver ground.

Video switcher indicator description: 1, long bright 2, fast flash 3, slow flash (fast flash, slow flash and steady light is switched by the channel that the video switcher receives to the remote control receiver)
