Mini Micro DC BEC Step Down Module

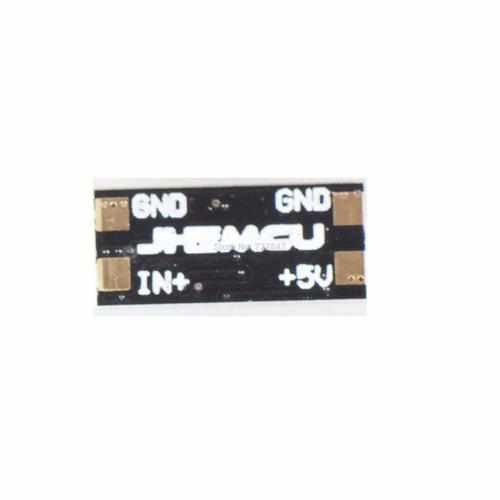

MINI DC-DC BEC 5V/2.5A Mini DC Step-Down Module

Input voltage: 2-6S (5-30V)

Output voltage: 5V ± 0.1V

Output current: 2.5A (MAX)

Conversion efficiency: 90%

Size: 15*7*4MM

Weight: 0.7g

2-3S input, output 5V 2.5A

4S output 5V 2.0A

5-6S output 5V 1.5A

Features:

1. Support 2-6S input, stable 5V output

2.4S to 5V 2A, low ripple, regulated power supply

3. Small size, 15*7*4MM

Precautions:

The magnitude of the output current is related to the level of the input voltage and the temperature at which the module heats up.

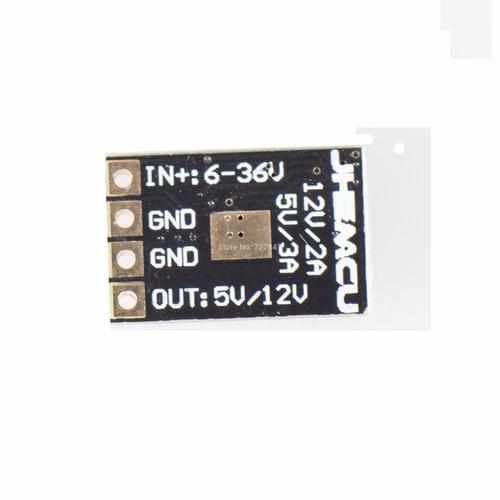

DC-DC BEC 5V/12V 3A DC Step-Down Module

Input voltage: 2-6S (5-30V)

Output voltage: 5V ± 0.1V or 12V ± 0.1V (default: 5V)

Output current: 5V 3A (MAX), 12V 2A (MAX)

Conversion efficiency: 90%

Size: 17*11*4MM

Weight: 1.4g

Select 5V output (default):

2-3S input, output 5V 3A

4S output 5V 2.5A

5-6S output 5V 1.5A

Select 12V output:

2-3S input, output 12V 2.5A

4-6S output 5V 2A

Features:

1. Support 2-6S input, stable 5V output

2.4S to 5V3A, low ripple, regulated power supply

Precautions:

1. If you want to output 12V, the input voltage must be greater than 12V, and the 12V voltage selection point is soldered.

2. The magnitude of the output current is related to the level of the input voltage and the temperature at which the module heats up.

Package including:

1pcs or 2pcs step down module
