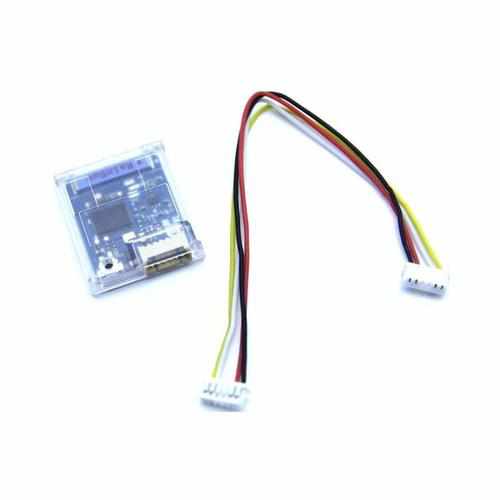

Oversky 3DR 433MHz APM PIXHAWK PI Radio Telemetry Module

Description:

MINI Radio has a much smaller size and weight than similar products. It is based on 3DR Radio hardware and combined with our many years of RF design experience. This product is suitable for APM, PIX / PX4, FPV multi-axis aircraft, etc.

This section is 433Mhz

Specification:

Volume: 26.5 * 23.5 * 5.5 mm (excluding protruding parts)

Interface definition: See product identification on the reverse side.

Weight: 3.2g (not including connection cable);

Compatible with any 3DR 433M digital transmission on the market;

Built-in antenna

433MHz (beige antenna);

100 mW maximum output power (adjustable);

117 dBm receive sensitivity;

Transparent serial link

MAVLink protocol framing (MAVLink protocol architecture);

1Frequency Hopping Spread Spectrum (FHSS) frequency hopping spread spectrum technology (FHSS);

Configurable duty cycle

Error correction corrects up to 25% of bit errors

Open-source SIK firmwar; SIK open source firmware

Supply voltage: 3.7-6V DC

Transmit current: 100 mA at 20 dBm

Receive current: 25 mA

Package included:

1 x MINI Radio

1 x Connecting Lines
