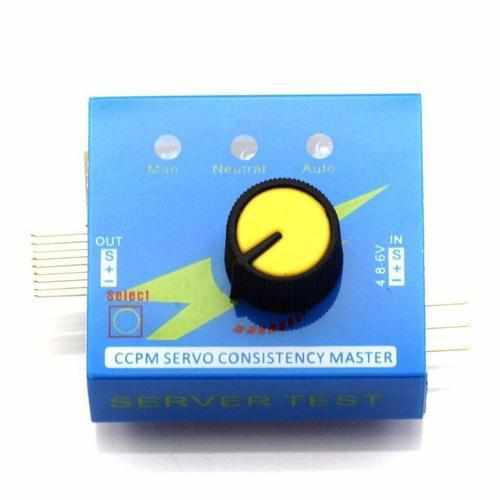

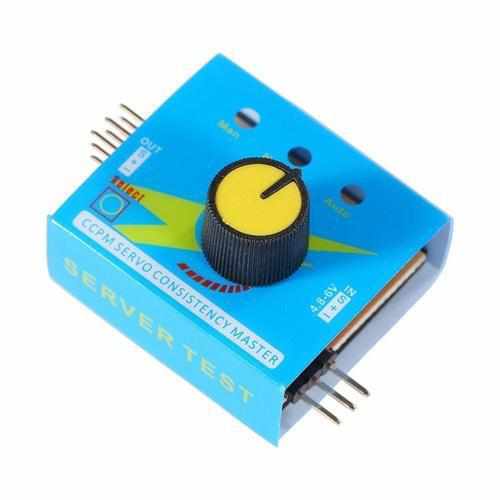

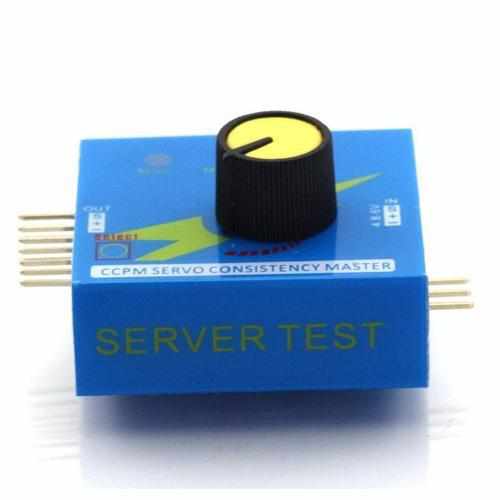

3CH CCPM RC Consistency Master ESC Server Test

Description:

CCPM Servo Consistency Master / Servo tester

The device also can be used as a signal generator for electric speed controller (ESC), then you can test your motor system without using a transmitter and receiver.

There are 3 modes to check servos or ESC:

Manual mode: turn the knob with different speed, check the reaction time.

Neutral mode: make the servo go back to the neutral point.

Automatic \"window wiper\" mode: make the servo swing like a window wipers in the biggest angle.

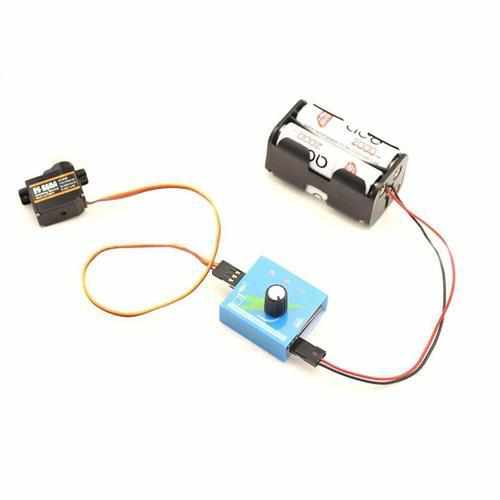

It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.

You can also connect 1-3 ESC to test and compare their reaction time respectively.

It can connect 3 servos of the CCPM helicopters and select servos.

It can also connect the servo of airplanes install the steering-box and adjust planes by using such as the neutral mode and so on.

Specification:

Voltage consumption: DC4.8-6V

Size: 48 x 42 x 17mm

Color: Blue

Packet Include:

1x multi Servo teste
