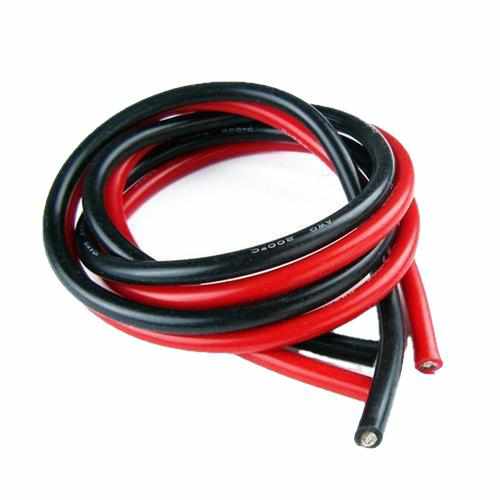

10 meters wire silicone 10 12 14 16 18 20 22 24 26 28 AWG

8AWG Special soft high temperature silicone wire

Core material: tinned copper wire

Sheath material: silicone rubber

Maximum outer diameter of the wire: 6.0 (mm)

Test voltage: 2000V

Outer diameter tolerance: ±0.1mm

10AWG Special soft high temperature silicone wire

Temperature : -65 degrees to +200 degrees ---
Color: black, red
ingle wire diameter : 0.08mm
Inner core : 1050 Share
Outer diameter : 5.5mm

12AWG Special soft high temperature silicone wire
Temperature : -65 degrees to +200 degrees ---
Color: black, red
Single wire diameter : 0.08mm
Core : 680 shares
Outer diameter : 4.5mm

14AWG Special soft high temperature silicone wire
Temperature : -65 degrees to +200 degrees ---
Color: black, red
Single wire diameter : 0.08mm
Core : 400 shares
Outer diameter : 3.5mm

16AWG special soft high temperature silicone wire
Temperature : -65 degrees to +200 degrees ---
Color: black, red
Single wire diameter : 0.08mm
Core : 252 shares
Outer diameter : 3.0mm

18AWG special soft high temperature silicone wire
Temperature : -65 degrees to +200 degrees ---
Color: black, red
Single wire diameter : 0.08mm
Core : 150 shares
Outer diameter : 2.3mm

20AWG special soft high temperature silicone wire
Temperature : -65 degrees to +200 degrees ---
Color: black, red
Single wire diameter : 0.08mm
Core : 100 shares
Outer diameter : 1.80mm

22AWG special soft high temperature silicone wire
Temperature : -65 degrees to +200 degrees ---
Color: black, red
Single wire diameter : 0.08mm
Inner core : 60 shares
Outer diameter : 1.70mm

24AWG special soft high temperature silicone wire
Temperature : -65 degrees to +200 degrees ---
Color: black, red
Single wire diameter : 0.08mm
Inner core : 40 shares
Outer diameter : 1.60mm

26AWG special soft high temperature silicone wire

Temperature : -65 degrees to +200 degrees ---

Each copper wire diameter: 0.08mm

Core: 30 shares(0.15 square millimeters)

Outer diameter: 1.5mm

28 AWG special soft high temperature silicone wire

Temperature: -65 degrees to 200 degrees-

Each copper wire diameter: 0.08mm

Core: 16 shares(0.08 square millimeters)

Outer diameter: 1.3mm

30AWG special soft high temperature silicone wire

Temperature: -65 degrees to 200 degrees-

Each copper wire diameter: 0.08mm

Core: 11 shares(0.06 square millimeters)

Outer diameter: 0.8mm

Products are widely used in electronics, batteries, model aircraft battery, model wiring harness, electric appliance and equipment instrument internal connections,

Large transformer and lamps and lanterns and motor lead wire connection wire, etc.

Package including:
5m red silicone wire
5m black silicone wire
