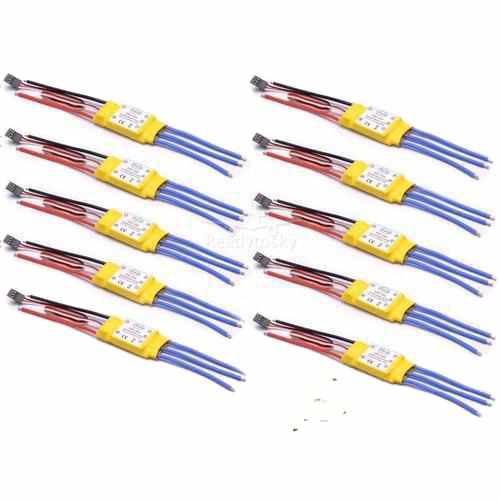

10pcs 30A Brushless ESC Speed Controller

$184.00

30A Brushless ESC Output: Continuous 30A, Burst 40A up to 10 Secs. Input Voltage: 2-3 cells lithium battery or 5-12 cells NiCd/NIMh battery. BEC: 2A / 5V (Linear mode). Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles...

  • Availability: In Stock

30A Brushless ESC

Output: Continuous 30A, Burst 40A up to 10 Secs.

Input Voltage: 2-3 cells lithium battery or 5-12 cells NiCd/NIMh battery.

BEC: 2A / 5V (Linear mode).

Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.(BLM: BrushLess Motor)

Size: 45mm (L) * 24mm (W) * 11mm (H).

Weight: 25g.

Features:

Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.

Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.

Programmable Items:

Brake Setting: brake enabled / brake disabled.

Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).

Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.

Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.

Start Mode: normal / soft / very soft.

Timing: low / medium / high.

Reset: reset all the programmable items to their default settings.

2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.

Package Includes:

10x 30A Brushless ESC

30x 3.5mm bullet female
