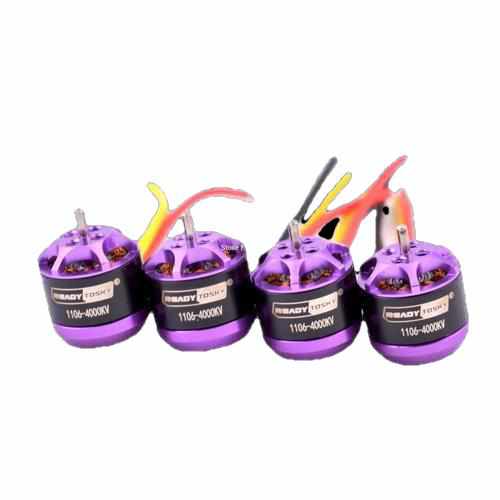

1106 4000KV Brushless Motor 3-4S

Features:

Aluminum alloy shell is durable with high strength.

Bearing has high rotating speed, low noise, high precision and long service life.

Single thick wire winding provides high power to fly fast during racing.

Suitable for 60mm 70mm 80mm 90mm 100mm or other mini FPV racing quadcopters.

Titanium alloy shaft with high precision processing and dynamic balancing testing ensure smoothness.

Specification:

Stator Diameter: 11mm

Stator Thickness: 6mm

No. of Stator Arms: 9

No. of Stator Poles: 12

Motor KV: 4000KV

No-Load Current(11.1V): 1A

Motor Resistance: 13mΩ(Ref)

Max Continuous Current: 15A

Max Continuous Power: 110W

Outsize Diameter: 14.2mm

Body Length: 13.6mm

Max Lipo Cell: 3-4S

Support ESC: 15-20A

Recommended Prop(inch): 2035*4/3020*2

Package Included

1PCS / 2PCS / 4PCS 1106 4000KV Motor
