1400KV Brushless Motor + Servo Angle Adjuster For RC Wing SU-27

A2212 2212 1400kv motor:

KV: 1400

Max Efficiency: 80%

Max Efficiency Current: 4-10A (>75%)

Current Capacity: 12A/60s

No Load Current @ 10V: 0.5A

No. Of Cells: 2-3 Li-Poly

Motor Dimensions: Φ27.5 x 30mm

Shaft Diameter: Φ3.17mm

Weight: 47g

30A Brushless ESC:

Output: Continuous 30A, burst 40A up to 10 Secs.

Input voltage: 2-3 cells lithium battery or 5-12 cells NiCd/NIMh battery

BEC: 2A / 5V (Linear mode).

Max speed: 210,000rpm for 2 poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.

(BLM: Brushless Motor)

Size: 45 * 24 * 11mm / 1.8 * 0.9 * 0.4in

Weight: 25g / 0.9oz

Item total weight: 480g / 1.06Lbs

40A Brushless ESC:

BEC : 5V/3A

Li-ion/Li0poly:2-4S

Size: about 6.8x2.4cm(ESC with Cable); about 7.2x2.4cm (ESC with banana connector)

Weight: about 33.2g(with cable); about 32g(with banana connector);

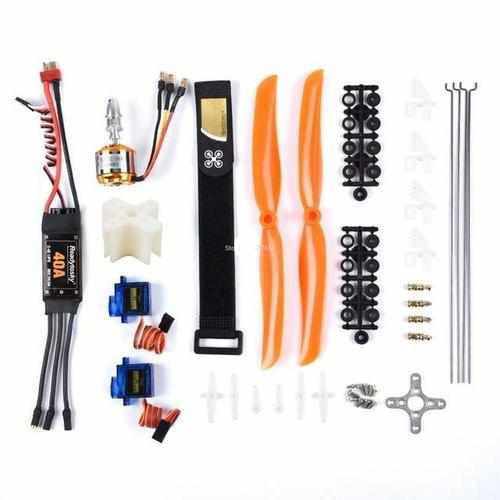

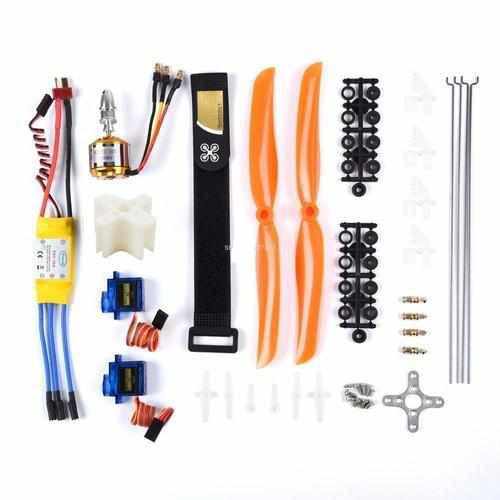

Package Included

2212 1400kv brushless motor *1

30A or 40A ESC *1 ( send as your choice)

8060 Propeller *2

Metal motor base *1

Plastic motor base seat *1

SG90 servo *2

Servo accessories *2

Battery fixing strap *1

Servo angle adjuster *4

Steel lever *4

Servo angle adjuster accessory screw *4
