20A ESC / 2204 2300KV Motor / 5045 Propeller Kit

Skywalker 20A ESC parameters:

Output capacity: continuous current 12A, short-time current 15A (not less than 10 seconds)

Power input: 2 lithium batteries or 5-6 ni-mh/ni-cd batteries

3 BEC output: 5V 2a (linear mode -linear mode)

High speed: 210,000 RPM for 2-pole motors, 70000 RPM for 6-pole motors, and 35,000 RPM for 12-pole motors

Size: 38mm (length) *18mm (width) *7mm (height)

Weight: 10g

MT2204 2300KV Brushless Motor

Motor parameters:

2204-2300 kv

The outer diameter of the motor is 28mm

Weight: 27 g

Suitable for electrical regulation 12a-40a

most pulls: 420g

Applicable propeller: 4-6inch 2-blade propeller 4-5inch 3-blades propeller

Product specifications:

(1) Output: <= 15mA (5.0)

(2) Input: DC 4.2-6.0v

(3) Output signal: 1.5ms

(4) Size: 46*32*17MM

(5) Weight: 8g

(6) Adjustment method: manual, automatic, median.

Features:

It is very convenient to detect and set the virtual bit, jitter and median of the server.

Can be connected to two sets of servos or ESC; single-chip control, good stability and high precision. Turn the knob to detect the servo.

If you connect the electronic governor (with or without brush), you can get rid of the remote control device for manual speed control, for test adjustment

Speed or motor performance is very practical, no need to tediously connect the remote control and receiver. It is equivalent to a "hand

The function of the "receiver", through the knob to simulate the transmitter steering

Instructions for use:

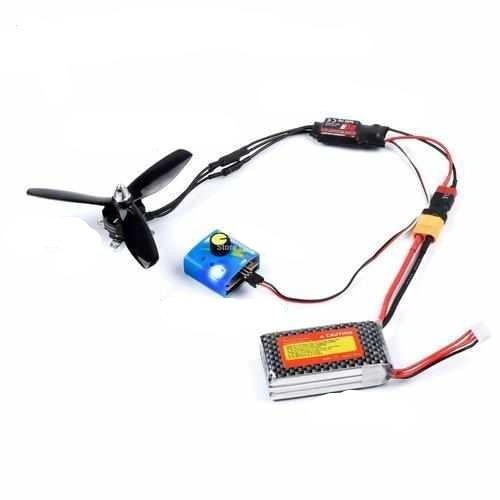

Refer to the picture below, the left servo is connected to the upper and lower 3 groups, which can be connected to 3 servos; the right single-row pin is connected to the power supply, close to the side is the negative pole (see the identification symbol), and the battery negative pole is connected. Do not pay attention to the reverse, if the power supply is reversed, the IC will be burned; the pin corresponding to the S identifier will be ignored. When the power is turned on, the blue light will be on at the same time, then only the first one on the left will be illuminated. For the manual adjustment of the potentiometer test, press the button, the middle light is on, and it is the centering test; the third light is on, and the test is automatic. The test ESC is connected in the same way as the servo, but the input should not be connected to the power supply. The test motor must be connected to the ESC first, just like the ESC!

CCPM Servo Consistency Master / Servo tester

The device also can be used as a signal generator for electric speed controller (ESC), then you can test your motor system without using a transmitter and receiver.

There are 3 modes to check servos or ESC:

Manual mode: turn the knob with different speed, check the reaction time.

Neutral mode: make the servo go back to the neutral point.

Automatic "window wiper" mode: make the servo swing like a window wipers in the biggest angle.

It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.

You can also connect 1-3 ESC to test and compare their reaction time respectively.

It can connect 3 servos of the CCPM helicopters and select servos.

It can also connect the servo of airplanes install the steering-box and adjust planes by using such as the neutral mode and so on.

Specification:

Voltage consumption: DC4.8-6V

Size: 48 x 42 x 17mm

Original box: NO

Color: Blue

Item size: 48*42*17 mm

Net weight: 7g

Package Included

1 x 2204 2300KV Brushless Motor

1 x 5045 Propeller

1 x 20A ESC

1 x servo tester

Or

1 x 2204 2300KV Brushless Motor

1 x 20A ESC

Or

1 x 2204 2300KV Brushless Motor

1 x 5045 Propeller

Or

20A ESC

Or

1 x servo tester
