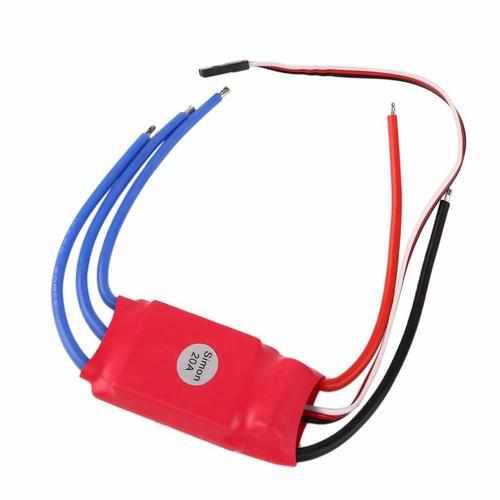

20AMP 20A SimonK Firmware Brushless ESC w/ 3A 5V UBEC

Features:

This hardware, with the SimonK firmware, gives you the perfect solution for multirotor use:

Highest efficiency 100% N-FET design.

Highest accuracy with Crystal Oscillator (Temperature won't affect the PWM operating range like other cheap ESC's).

No low voltage cutoff, because any cutoff in a multirotor = crash.

No over temp cutoff, because any cutoff in a multirotor = crash.

Super high refresh rate, no buffering of the input signal, resulting in more than 490Hz response rate.

16KHz motor frequency, giving fastest response of the motor, and quietest operation as well (no 8KHz squeal).

Super simple, foolproof operation! Nothing to program other than the throttle range.

ESC Specs:

Max cont. current: 20A

Peak current: 30A (10s)

Voltage: 2-3S lipo, 5-8 Nicad

BEC: 5V/3A

Size: 50x23x8mm

Weight: ~24g

Packet content:

100% Brand New

1 x 20A esc
