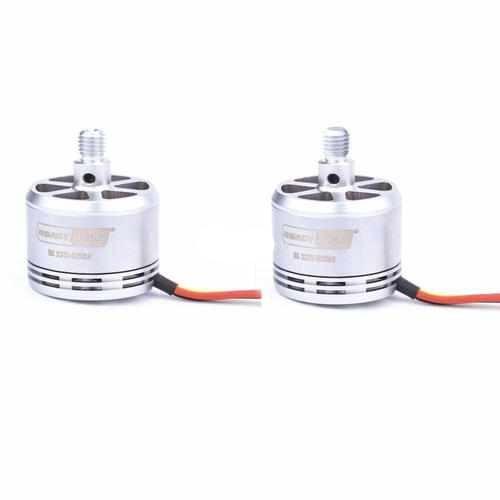

2312 920KV CW / CCW Brushless Motor

2312 920KV CW / CCW Brushless Motor Motors Drones Xpress 1CW and 1CCW
2312 920KV CW / CCW Brushless Motor Motors Drones Xpress 1CW and 1CCW

2312 920KV CW / CCW Brushless Motor

$85.00

Features:EZO Japanese bearing0.2mm silicon steel sheetsDynamic balanceCNC MACHINED ALUMINUM CASESpecifications:180 degree magnetsItem: 2312KV: 920kvStator Diameter 23.0 mmStator Thickness 12.0 mmNo. of Stator Arms 12Magnet Poles 14No-Load Current (Io/10V) 0.45 AmpsMotor Resistance (Rm) 0.117 OhmsMax Continuous Current 14 AmpsMax Continuous Power...

  • Availability: In Stock
Type

Features:

EZO Japanese bearing

0.2mm silicon steel sheets

Dynamic balance

CNC MACHINED ALUMINUM CASE

Specifications:

180 degree magnets

Item: 2312

KV: 920kv

Stator Diameter 23.0 mm

Stator Thickness 12.0 mm

No. of Stator Arms 12

Magnet Poles 14

No-Load Current (Io/10V) 0.45 Amps

Motor Resistance (Rm) 0.117 Ohms

Max Continuous Current 14 Amps

Max Continuous Power 220 Watts

Weight 48 ± 2g

Outside Diameter 27.7 mm

Body Length 26 mm

Max Lipo Cell 2-4s
