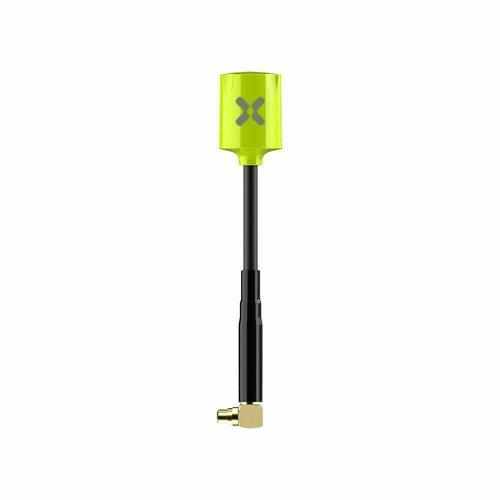

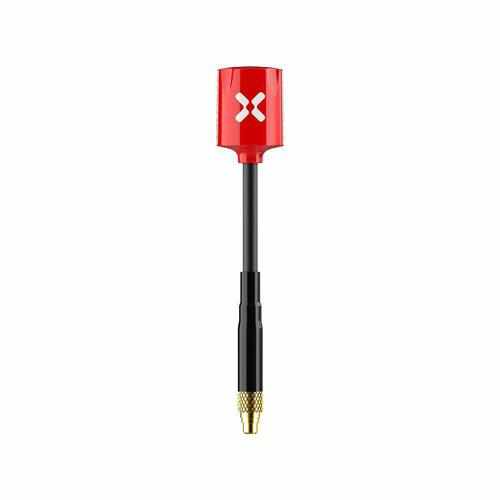

2pcs Foxeer Micro Lollipop 5.8G 2.5DBi Omni RHCP FPV Antenna

Description:

Brand name: Foxeer

Item number: Micro Lollipop

Center frequency: 5.8 GHz

Gain: 2.5 Dbi

Axial ratio: Close to 1

Bandwidth: 5.5-6 GHz

Radiation efficiency: 98%

V.SWR: 1.07 in center frequency

Connector: SMA/RP-SMA/Angle MMCX/Straight MMCX/U.FL

Weight: SMA & RP-SMA 4.7g/Angle MMCX 3.2g/Straight MMCX 3.1g/U.FL 1.6g (Optional)

Dimension(mm): Ф11*65

Cable length(mm): 51

Polarization: RHCP

Shell material: PC + ABS

Color: Purple,Black,Green, Red (Optional)

Cable: RG178,SFX086

Package includes: 2pcs/pack

Features:

* Body adopt imported PC+ABS material, can withstand high strength impact.

* IRoot reinfircement design 360° protection.

*Flexible cable,easy to bent and install.

*Customed MMCX angle connector,compatible with DJI AIR Unit.

Package Included:

Foxeer Micro Lollipop 5.8G 2.5DBi High Gain Omni RHCP FPV Antenna
