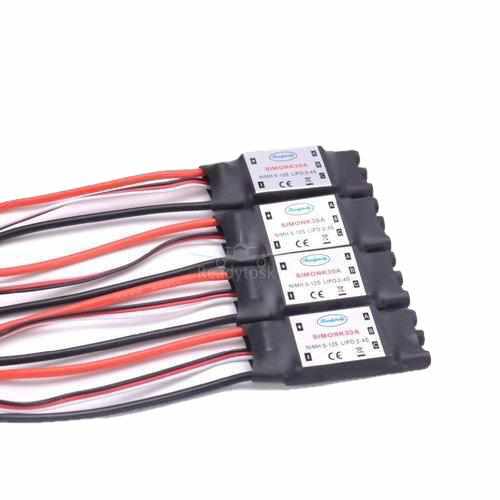

30A SimonK RC Brushless ESC With BEC 2A

$181.00

ESC Features:Highest efficiency 100% N-FET design.Highest accuracy with Crystal Oscillator (Temperature won't affect the PWM operating range like other cheap ESC's).No low voltage cutoff, because any cutoff in a multirotor = crash.No over temp cutoff, because any cutoff in a...

  • Availability: In Stock
Type

ESC Features:

Highest efficiency 100% N-FET design.

Highest accuracy with Crystal Oscillator (Temperature won't affect the PWM operating range like other cheap ESC's).

No low voltage cutoff, because any cutoff in a multirotor = crash.

No over temp cutoff, because any cutoff in a multirotor = crash.

Super high refresh rate, no buffering of the input signal, resulting in more than 490Hz response rate.

16KHz motor frequency, giving fastest response of the motor, and quietest operation as well (no 8KHz squeal).

Super simple, foolproof operation! Nothing to program other than the throttle range.

ESC Specs:

Cont. current: 30A

Max. current: 35A

Input Voltage: 2-4S lipo / 4-12 cell Ni-MH/Ni-Cd

BEC: 5V 2A (Linear mode)

Size: 55x26x8mm (length 145mm including power cable)

Weight: ~24g
