3508 380KV Motor

Features:

Flat design, multi pole exterior rotor brushless motor, large torque, high efficiency

Multiple mounting holes at the bottom of the motor, which is compatible with the mainstream multi-rotor on the market

Excellent consistency, stability and clear positioning, tested by the professionals

High efficiency, reliable brushless motor for Vtol

Motor go through rotation testing

Light weight and great exterior design

Long life Japanese NMB ball bearings

Efficient Japanese Kawasaki stator steel

Unique wiring method and elaborate technology

The best efficiency based on the relevant pull

Specifications:

Stator Dia:35mm

Stator thickness:8mm

No. of stator arms:12

No. of stator poles:14

Motor KV:380KV

No load current(A/10V):0.3A

Motor resistance:135m

Max continuous current:22A/30S

Max continuous power:330W

Weight:106g

Outside Dia:42mm

Shaft Dia:3.2mm

Body length:26.5mm

Overall shaft length:33mm

Max.lipo cell:4S

Recommanded Prop(inch): APC12 * 3.8 APC14 * 4.7 DJI14 * 5.5

Package Included

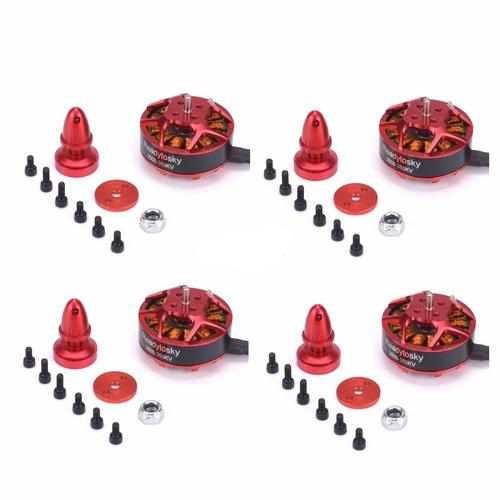

3508 380kv motor
