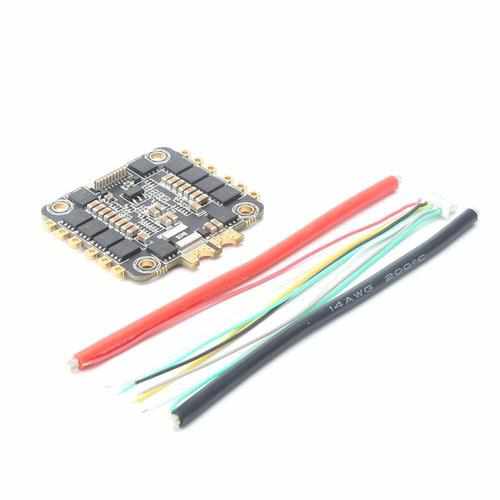

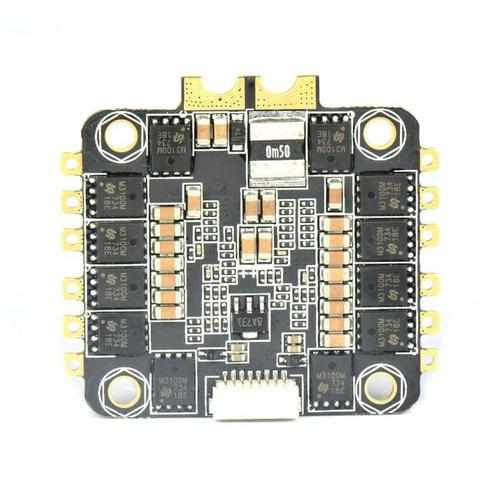

35A 2-6S 4 IN 1 BLHeli_S Dshot600 Brushless ESC

Description:

Item Name: 35A 4 IN 1 ESC

Power supply voltage: 2-6S

Continuous current: 35A

Weight: 12.2g

Support 150Dshot 300 Dshot 600 Dshot, and subsequent direct upgrades.

The Dshot series is called by BB21MCU. 48Mhz Runs BLHELI_S J_H_xx firmware

Support 2-6S, 4PWM input, without BEC

Support Oneshot / Multishot /Dshot BLHELI-S firmware

Size 36mm*36mm (standard 30.5mm installation hole distance)

Dshot and oneshot and multishot:

Dshot is a digital signal. Oneshot and multishot are analog signals. When analog signals are used, hardware or software will produce some noise, that is, clutter. If the clutter is too much, you need to add a filter capacitor or resistance to the hardware filter at this time. (the way, those need to remove the capacitance probably is the case) and Dshot digital signals, in addition to save calibration power transfer trip, in the transmission process does not need to be filtered! After all, 0 is 0, 1 is 1, no distortion and no derangement; and a cyclic redundancy check bit (CRC) is very safe.

The advantages of Dshot:

No longer need to calibrate the electric throttle stroke.

accurate electrical signal is the greatest advantage of digital signal. PWM is an analog signal, and it is easy to appear the problem of waveform distortion during the transmission process.

compared to the current "1000~2000" value, the Dshot travel is "0~2048".

The speed is much faster than the oneshot protocol.

security, Dshot with four bit cyclic redundancy check (CRC)

Package included:

1x 35A 4 IN 1 ESC
