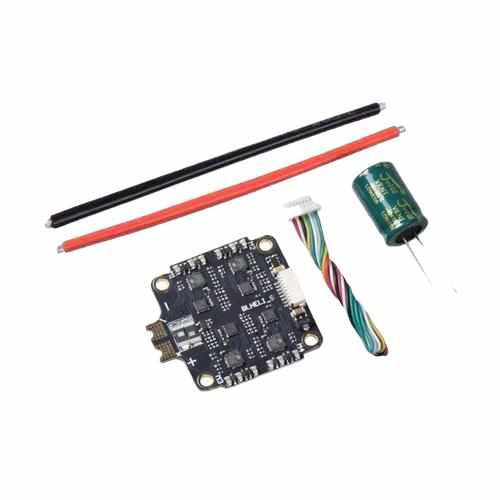

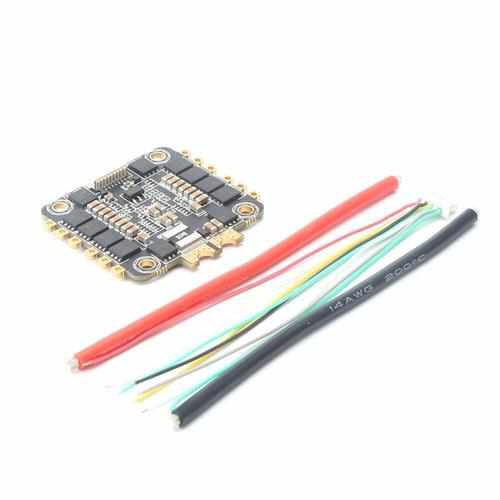

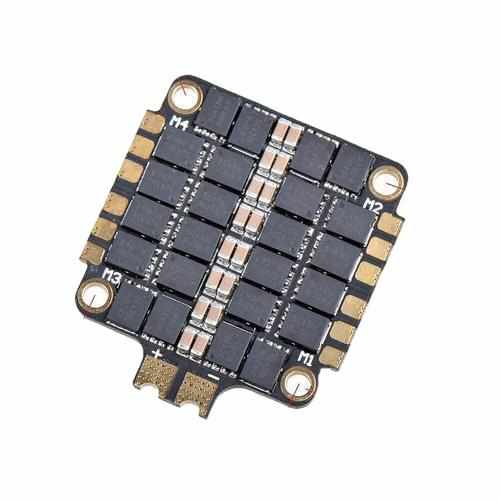

35A 40A 55A BLheli_S 2-6S 4 In 1 Brushless ESC

$182.00

Description: Supply voltage: 2 S-6 S Continuous current: 35A/ 40A / 55A Weight: 11.8 grams Support Dshot150 Dshot300 Dshot600. The Dshot series calls the BB21MCU. 48 Mhz Support 2 S-6 S, 4PWM input without BEC Support for Oneshot / Multishot...

  • Availability: In Stock
Type

Description:

Supply voltage: 2 S-6 S

Continuous current: 35A/ 40A / 55A

Weight: 11.8 grams

Support Dshot150 Dshot300 Dshot600.

The Dshot series calls the BB21MCU. 48 Mhz

Support 2 S-6 S, 4PWM input without BEC

Support for Oneshot / Multishot Mode / Dshot BLHELI-S firmware

Size 36mm * 36mm (standard 30.5mm mounting hole spacing)

Vshot vs. oneshot and multishot mode:

DShot is fully digital signal, oneshot and multishot mode are analog signals. While the use of analog signals, ESC hardware and software will generate some noise, which is messy. If there are too many clutter, you need a filter capacitor or resistor to hardware filtering. (Off-topic, those who need to remove the capacitor is probably the case) and DShot is a digital signal, in addition to eliminating the need to calibrate the ESC, no filtering is needed during the transfer! After all, 0 is 0, 1 is 1, no distortion and no confusion; And it is very safe with a cyclic redundancy check bit (CRC).

Advantages of Dshot:

It is no longer necessary to calibrate the ESC gas hub.

The precise ESC signal is the biggest advantage of the digital signal. PWM is an analog signal that is susceptible to waveform distortion during transmission.

Compared with the current value of "1000 ~ 2000", the trip from Dshot is "0 ~ 2048".
speed over, faster than oneshot ESC protocol.

security, Dshot comes with four-bit cyclic redundancy check (CRC).

Soldering: the capacitors are each soldered, the distribution board or the positive and negative poles of the ESC. The long legs are positive and the short legs are negative.

Package Included:

1x ESC
