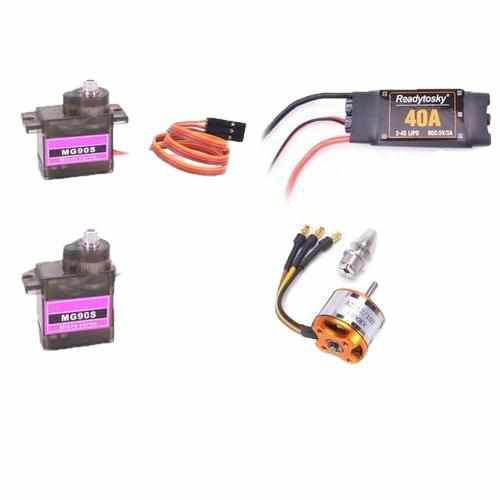

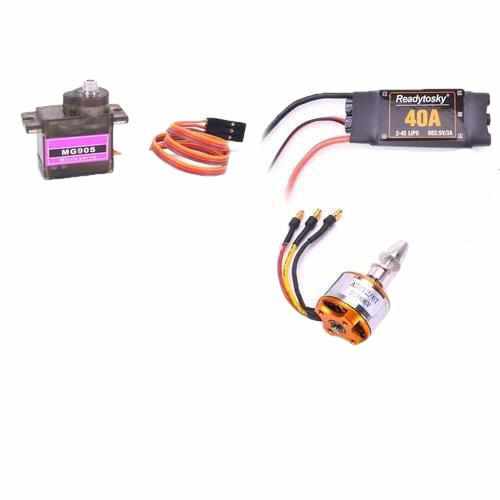

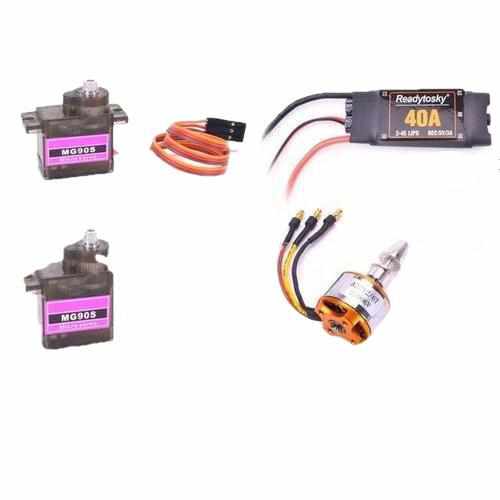

40A Brushless ESC 2200KV Motor MG90S Servo Gear

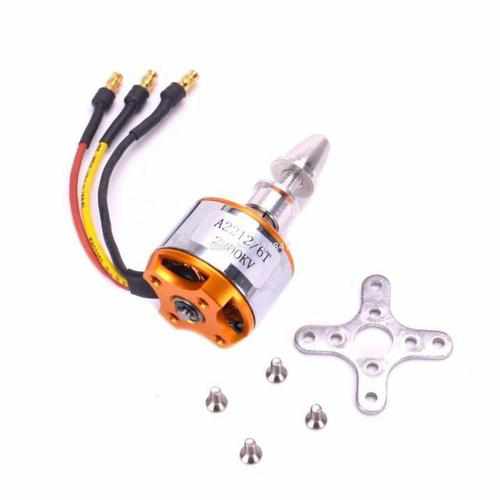

A2212 2200kv Motor Specification:

KV: 2200

Ri(M Ω): 0.033

Battery: 2-3Li-Po

Max Power: 342W

Test Prop: 7x3/7x4

Motor Size: 27.5x38mm/1.08''x1.5''

Shaft Diameter: 3.17mm/0.12''

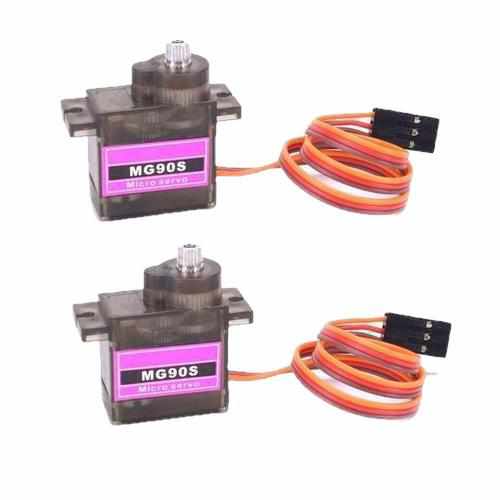

Product Model: MG90S

Working torque: 2KG/cm

Reaction speed: 0.11 seconds / 60 degrees (4.8V

Operating temperature: 0 -55

The dead band setting: 5 microseconds

Plug Type: JR, FUTABA General

Rotation angle: 180 degrees

Servo: analog Servo

Operating voltage: 4.8V

Structural Material: copper metal teeth, coreless motor, double ball bearing

Scope: small and medium-sized electric model aircraft and model.

The attachment contains: helm, the line is long 30CM, fixing screws, damping pouches and aluminum sets and other accessories (see really making plans)

Color: As the picture

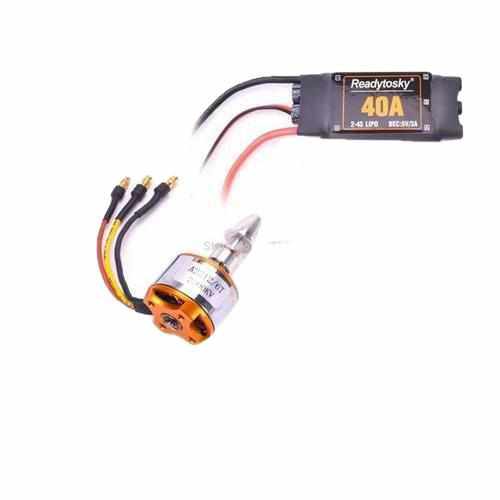

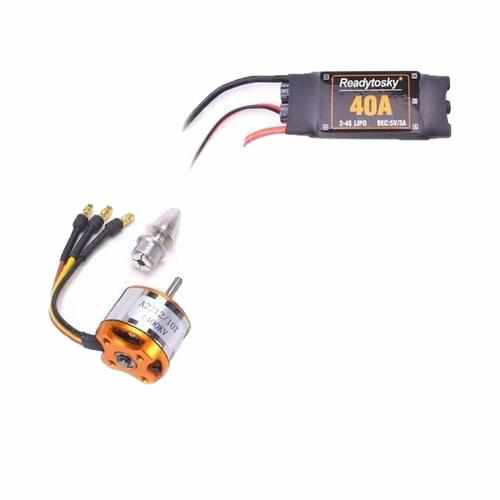

ESC Specification:

BEC : 5V/3A

Li-ion/Li0poly:2-4S

Size: about 6.8x2.4cm(ESC with Cable); about 7.2x2.4cm (ESC with banana connector)

Weight: about 33.2g(with cable); about 32g(with banana connector);
