4Pcs 5010 360kv / 750kv Brushless Motors

Features:

1.Machined aluminum front housing with four fan-style cooling holes that pump air through the motor while it runs.

2.Rear threaded mounting holes with both 16 mm and 19mm hole spacings fit a variety of applications.

3.Specially designed NdFeB magnets with high temperature rating for trouble-free operation.

4.High Temperature 140 C (356 F) rated wire is used for winding the motors to minimize the risk of burning up the motor.

5.High quality stator plates are epoxy coated on the inner surface to prevent winding shorts. 0.20mm stator plate id used on this motor 5010.

6.High quality shielded and permanently lubricated ball bearings are used to support the motor shaft in all our motors.

7.High temperature adhesives are used to secure the stator windings and prevent them from shifting and getting pinched or shorting out .

Specifications:

Motor size: 50*10mm

Shaft size: 4mm

Weight: 80g

KV(rpm/v): 360/750

Battery: 2-6Li-Po

ESC: 20-40A

Best working with props of 14-16"

Specifintegrated circuitation:

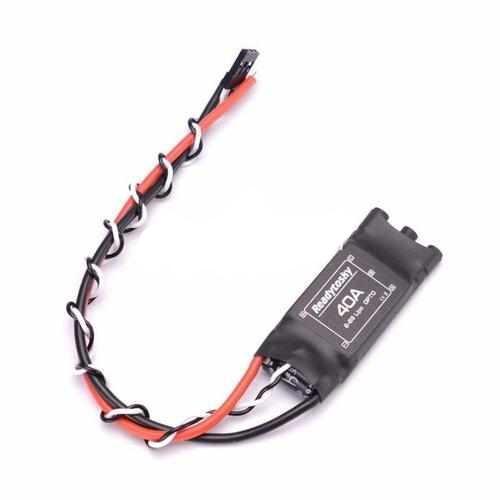

Brand: Readytosky

Cont.Current:40A

Burst Current(10sec):60A

BEC:None

Lipo:2-6S

Programming:Timing(high/middle)

Usage:RC Multintegrated circuitopter

APAC means Asia-Pacifintegrated circuit Version,the offintegrated circuitial ESC sold in Asia-Pacifintegrated circuit areas.

Features:

- Using Multintegrated circuitopter special program, fast throttle response,surpasses all kinds of open source software;

- Firmware was optimized specifintegrated circuitally for disc motor, and it has a very good compatibility;

- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing), easy to use;

- Throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight;

- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signal);

- Using MOSFET special driver integrated circuit, its performance and stability far surpass the driving circuit with discrete components built;

- Ultra-low resistance MOSFET, strong flow capacity.

Package Includes: (as shown in the Main Photo)

4pcs 5010 Brushless Motor

4pcs Readytosky 2-6s 40A esc
