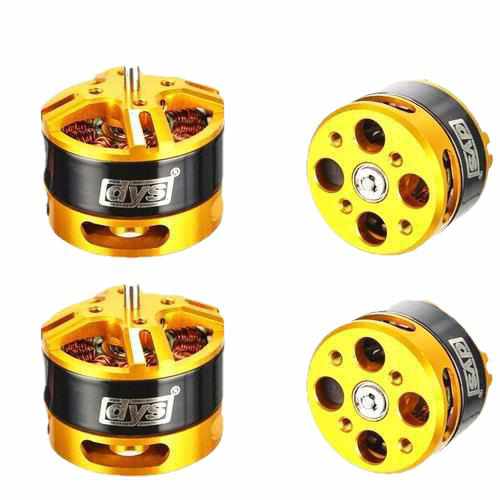

4pcs DYS BE1806 2300KV 1400KV Brushless Motor 2-3S

DYS final released BE series super strength out-runner multicopter dedicated brushless motor, The BE series motor is with Kawasaki, Japan 1200 # 0.2mm high efficiency silicon steel and 40UH high temperature powerful magnet. Selected the Japanese NSK pure imported bearings to reduce motor vibration, shell using high-precision CNC machining and professional balancing test, making concentricity, balance is, , greatly enhanced. DYS BE Series multicopter dedicated motor perfectly compatible with more than 99% of commercially available brushless ESC.

Specifications:

Brand: DYS

Item No: BE1806

Item name: 1806 2300KV Brushless Motor

Height: 0.85 inches (21.5mm)

Width: 0.90 inches (23mm)

Weight: 18 grams

RPM/V: 2300KV

Output shaft diameter: 2

Voltage: 2-3S

Battery: 2-3S lithium polymer

Max.current: 7.6A

Max.power: 84.4W

Mounting pattern: 2x 12mm and 2x 16mm

Motor mount hole size: M2

Features:

Low vibration motor great for flying

To make aircraft more stable

Less operating noise

More efficient

Bearings long life

Specifications:

KV..............................................................................................................1400
Configu ration....................................................................................NP
Stator Diameter....................................................................................23mm
Stator Length..........................................................................................18.5mm
Shaft Diameter.......................................................................................2.0mm
Motor Dimensions(Dia.*Len)...............................................23×18.5mm
Weight (g)...................................................................................................18g
No.of Cells(Lipo).....................................................................................2-4S
Max Continuous current(A)............................................................5.4A
Max Continuous Power(W)...........................................................79.9W

DYS final released BE series super strength out-runner multicopter dedicated brushless motor, The BE series motor is with Kawasaki, Japan 1200 # 0.2mm high efficiency silicon steel and 40UH high temperature powerful magnet. Selected the Japanese NSK pure imported bearings to reduce motor vibration, shell using high-precision CNC machining and professional balancing test, making concentricity, balance is, , greatly enhanced. DYS BE Series multicopter dedicated motor perfectly compatible with more than 99% of commercially available brushless ESC.

Low vibration motor great for flying

To make aircraft more stable

Less operating noise

More efficient

Bearings long life

Package Contents:

4x Brushless Motor
