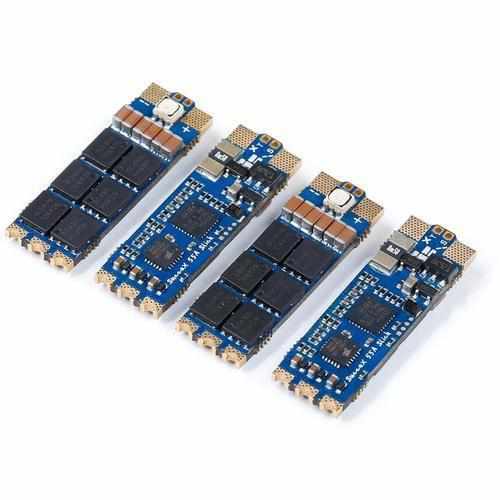

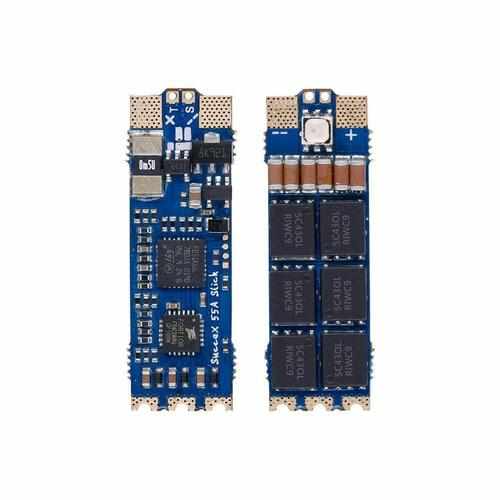

4pcs IFlight SucceX 55A Slick Blheli_32 2-6S RGB LED Brushless ESC

$663.00

SucceX 55A Slick 2-6S ESCPRODUCT DESCRIPTIONThe SucceX 55A Slick 2-6S ESC is specially designed for FPV racing frames with slim arms like Dove, Dove Lite, Archer. Less weight and less surface for to be more aerodynamic than your opponents. The...

  • Availability: In Stock

SucceX 55A Slick 2-6S ESC
PRODUCT DESCRIPTION
The SucceX 55A Slick 2-6S ESC is specially designed for FPV racing frames with slim arms like Dove, Dove Lite, Archer. Less weight and less surface for to be more aerodynamic than your opponents. The STM32F051 is combined with a high-performance 3in1 driver to lower the signal delay from throttle to the receiver.

Top Features:

8 layers double-sided PCB board

3oz 1.4mm thick power board

32bit STM32F051 MCU, 48kHz maximum clock speed

TDK MLCC Low ESR ceramic capacitors

Top grade NTMFS5C430L MOSFET

Specification:

MCU: STM32F051

Up tp 48kHz PWM frequency

Capacitance: 470μF/50V

Current Sensor: Yes

Input: 2-6S LIPO

RGB LED: Yes

Constant: 55A / Burst: 65A

BlHeli32 telemetry: Yes

BEC: No

Supports up to Dshot1200, Proshot, Oneshot, Multishot

Target: iFlight-BL32-PRO

Weight:3.7g without wires

Dimensions: 35*11mm

RECOMMENDATION:

No additional capacitor needed up to 5S!

But to encounter back EMF and ensure the longevity of your electronics, min. 220uF Cap 35V for 4-5S, 50V for 6S on your main lead!

Package Includes:

SucceX 55A Slick ESC *1pcs

35V 220uf capacitor * 1pcs

Power cables & ESC signal wires *1set
