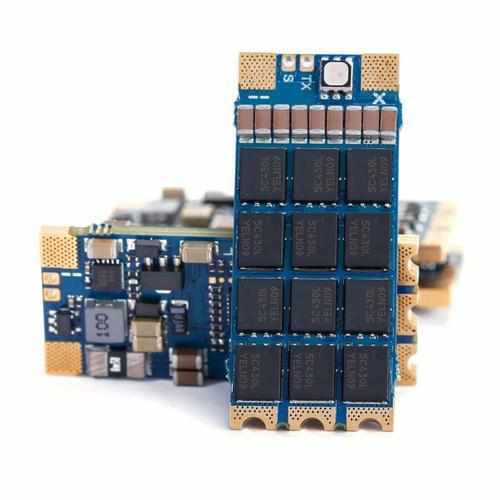

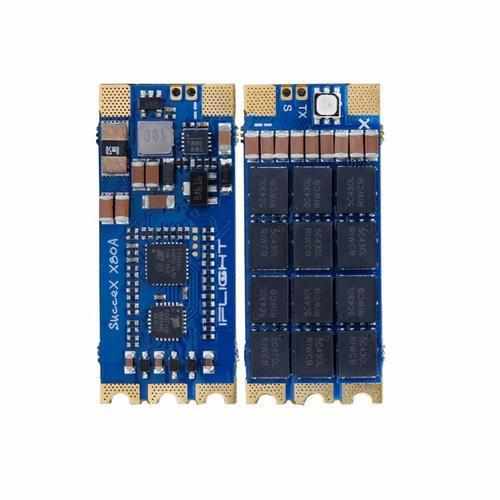

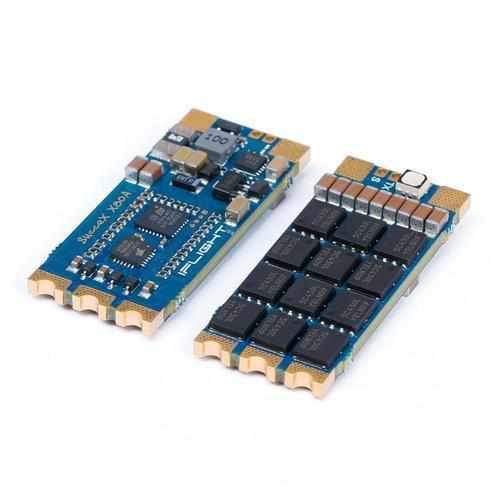

4pcs IFlight SucceX X80A 80A BLheli_32 2-8S DShot1200 ESC

SucceX X80A 2-8S X-Class ESC Single
PRODUCT DESCRIPTION

SucceX X80A 32bit BLHeli Dshot1200 Single ESC was designed to give your motors smooth power with great stability and durability. The 32bit 48mHz STM32F051K66 MCU and 11 pieces TDK MLCC total 240UF Low ESR capacitors bring faster-responding speed and smoother flying experience.

Features:

2-8S input (max 10S 50V)

48mHz running speed integrated 3 in 1 STM32F051K66;

80A 8 layers 4OZ copper PCB, better operating load capacity;

11 pieces TDK MLCC total 420UF Low ESR capacitors, lower ripple and more stable;

Top grade NTMFS5C430NL MOSFET, stable and reliable;

1 * 3528 LED for power- on display;

Rational layout, large soldering pad, countersinks and semicircle orifices enable each layer to be energized after power-on.

Specification:

Dimension: 40*17mm

Weight:8.3g without wire

Supports 2-8S lipo input

STM32F051K66 MCU, 48Mhz Runs BLHELI 32.X Firmware

Capacitance: total 240UF Low ESR

Telemetry output

BEC: No

Supports: DShot DShot150/300/600/1200/MultiShot/OneShot PWM Drive

Target: iFlight-BL32-PRO

BLHeliSuite download :http://www.mediafire.com/file/hkln8fcaif5s9l8/BLHeliSuite32_32616a.zip/file

Support:

Current Sensor

Telemetry output

Motor Timing

- Brake on Stop

Package Included:

SucceX X80A ESC *1pcs

50V 470uf capacitor * 1pcs

Power cables & ESC signal wires *1set

Please make sure the ESC has connected with 50V 470uf electronic capacity. Does not support 52xx motor.
