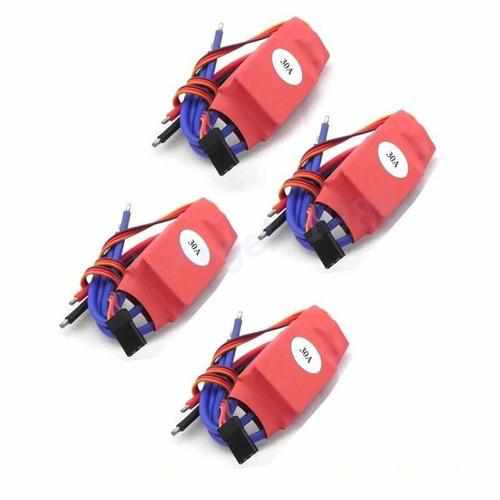

4pcs Simonk 10A/12A/15A /20A /30A/40A /50A/70A/80A Electronic Speed Co

This hardware, with the SimonK firmware, gives you the perfect solution for multirotor use:

simonk10A (2-3S):

Weight: 10 g

Size: 23.5x15x 6.1

Input voltage: (2-3 s Lixx).

Drive current: 10A (Max: 13 A/10S)

BEC Input :3V1A

Compatible signal frequency:30Hz - 499Hz

Simonk12A ( 2-3S ):

Weight:12g

Size:28*20*6.1

Input voltage:2-3S Lixx

Drive current:12A (Max:14A/10S)

BEC Input:5V2A

Compatible signal frequency: 30Hz - 499Hz

simonk15A (2-3S):

Weight:15g

Size:50*22*8

Input voltage:2-3S Lixx

Drive current:15A (Max:25A/10S)

BEC Input:5V2A

Compatible signal frequency: 30Hz - 499Hz

simonk20A (2-3S):

Cont Current: 20A

Burst Current: 28A

BEC Model: Linear mode

BEC Output: 5V3A

Li-ion/Li0poly:2-3S,or Ni-MH/Ni-Cd:4-12NIMH

Weight: 21g

Size: 32*24*7mm

simonk30A(2-4S):

Max cont. current: 30A

Peak current: 40A (10s)

Voltage: 2-3S lixx,

BEC: 5V/3A

Size: 50x23x8mm

Weight: ~28g

simonk30A-OPTO (2-6S)

(the ESC need the power from receiver or the flight control)

Weight:25g

Size:50*23*8

Input voltage: (3-6S Lixx)

Drive current:30A (Max:40A/10S)

BEC Input : NO

Compatible signal frequency: 30Hz - 500Hz

simonk40A(2-4S):

Weight:35g

Size:68*25*8MM

Input voltage:2-4S

Drive current:40A (Max:50A/10S)

BEC Input: 5V 3A

Compatible signal frequency: 30Hz - 500Hz

simonk50A-OPTO (2-6S)

(the ESC need the power from receiver or the flight control)

Weight:48g

Size:53*32*10

Input voltage: (2-6S Lixx)

Drive current:50A (Max:60A/10S)

BEC Input : NO

Compatible signal frequency: 30Hz - 500Hz

simonk70A-OPTO (2-6S)

(the ESC need the power from receiver or the flight control)

Weight:70G

Size:78*38*15MM

Input voltage: (2-6S Lixx)

Drive current:50A (Max:85A/10S)

BEC Input : NO

Compatible signal frequency: 30Hz - 500Hz

simonk80A-OPTO (2-6S)

(the ESC need the power from receiver or the flight control)

Weight:75g

Size:78*38*15MM

Input voltage: (2-6S Lixx)

Drive current:50A (Max:90A/10S)

BEC Input : NO

Compatible signal frequency: 30Hz - 500Hz

Flashed with the famous SimonK OpenSource Firmware for super-fast throttle response, which makes your quad more responsive and "locked in". Suited for quads up to 2.5kg, octos up to 5kg. The ESCs do not overheat, burn or lock out - unline many other ESCs flashed with the SimonK firmware.

The ESC motor leads are reduced to simple bullet connectors, this allows for quick and clean installation inside your multi rotor. Compatible with 2S to 3S battery

Packet content:

4 x SimonK esc
