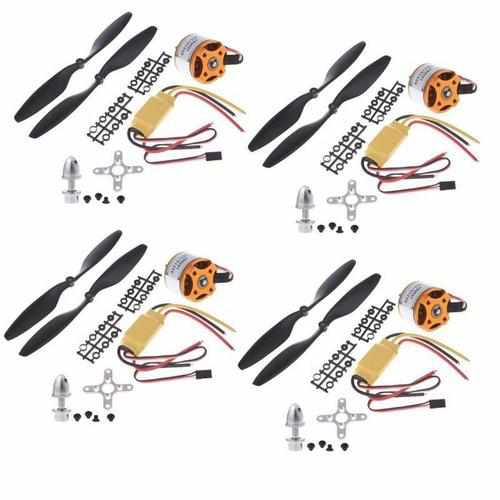

4set A2212 1000KV Brushless Outrunner Motor +30A ESC+1045 Propeller

Features:

Safety arming feature: regardless the throttle stick position, the motor will not spin after battery connected.

Throttle calibration: throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.

Programmable items:

Brake setting: brake enabled / brake disabled.

Battery type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).

Low voltage protection mode (cutoff mode): gradually reduce the output power / cutoff the output power.

Low voltage cutoff protection threshold (cutoff threshold): low / medium / high.

Start mode: normal / soft / very soft.

Timing: low / medium / high.

Reset: reset all the programmable items to their default settings.

Full protection features: low voltage cutoff protection / over-heat protection / throttle signal lost protection.

Specifications:

XXD A2212 1000KV brushless outrunner motor:

KV: 1000

Max. efficiency: 80%

Max. efficiency current: 4-10A (>75%)

Current capacity: 12A/60s

No Load current @ 10V: 0.5A

No. of cells: 2-3 Li-Poly

Motor size: 27.5 * 27mm / 1.1 * 1.1in

Shaft diameter: 3.17mm / 0.1in

Weight: 48g / 1.7oz

30A Brushless ESC:

Output: Continuous 30A, burst 40A up to 10 Secs.

Input voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery

BEC: 2A / 5V (Linear mode).

Max speed: 210,000rpm for 2 poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.

(BLM: Brushless Motor)

Size: 45 * 24 * 11mm / 1.8 * 0.9 * 0.4in

Weight: 25g / 0.9oz

Item total weight: 480g / 1.06Lbs

Packet content:

1 * A2212 1000KV Brushless Outrunner Motor with Mounts

1 * 30A Build-in BEC 2A Brushless ESC

1 * Pairs of 1045L/R Propellers (Black)
