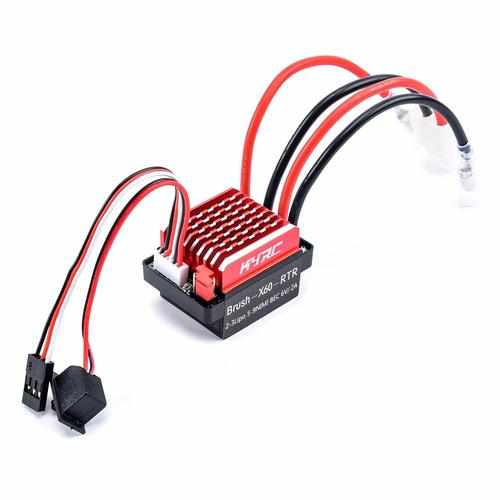

60A Brushed ESC Electric Speed Controller 6V/2A BEC T Plug

$99.00

60A Brushed Motor ESC Electrical Speed Controller for 1/10 RC Car Buggy Short Course Truck Crawler Tank   100% brand new and high quality   Features: Built-in heat sink, good heat dissipation efficiency, can quickly reduce the motor temperature.  ...

  • Availability: In Stock

60A Brushed Motor ESC Electrical Speed Controller for 1/10 RC Car Buggy Short Course Truck Crawler Tank




100% brand new and high quality



Features:

Built-in heat sink, good heat dissipation efficiency, can quickly reduce the motor temperature.



Running mode: forward brake and reverse brake / forward drag brake and drag brake.



Automatic throttle stroke adjustment, automatic throttle neutral adjustment, easy to use.



Jumper cap setting mode applied for battery type, which is simple and clear.



It has multiple protection functions such as lithium battery low voltage protection, cell quantity automatic detection, high temperature protection, and throttle signal loss protection.




Specifications:



Model number: Brush-X60



Forward: 60A/360A



Reverse: 30A/180A



Voltage: 2-3S Lipo/5-9 Cells NiMH Battery



Application: for 1/10 Car, Buggy, Short Course Truck, Crawler and Tank



Motor Reference:



2S Lipo/6 cells NiMH: 540/550 motor:> 12T or RPM less than 30000@7.2V



3S Lipo/9 cells NiMH: 540/550 motor: >18T or RPM less than 20000@7.2V



BEC output: 2A/6V (linear regulator switch)



Running mode: Forward and Reverse/Crawler mode
