7M GPS Module + APM PRO Flight Controller Board

Features:

100% Brand new and high quality!

Improvements made on the basis of original 2.6

3.3V LDO is easy to be burnt down, so it is changed to the imported large current LDO, support continously output 500MA high performance power supply

Two diodes are changed to Pixhawk Pix PMEG2005 super low differential voltage dynatron

22UF/16V capacity was added into 5V module to ensure stable power of main controller (2560 part).

All interfaces are designed at the two sides

Two individual RGB colorful light

Compression version PWM input, it only needs 4 servo cables to realilze 8 channels PWM

Specifications:

APM PRO, the new generation of APM

All interfaces are moved to the two sides, the middle part is no longer used for wiring

Standard 2.54 dupont plug

Size: 60*40*15

Package Size: 130*88*20

Net Weight: 37

GPS:

7M GPS module

10Hz update rate

Build in 25 x 25 x 4mm ceramic patch antenna

LNA and SAW chip

3.3V LDO low noise regulator

UART (TTL) port with EMI protection

3V Rechargeable Backup Capacitors

Fix indicator LEDs

Reverse polarity protection for input power

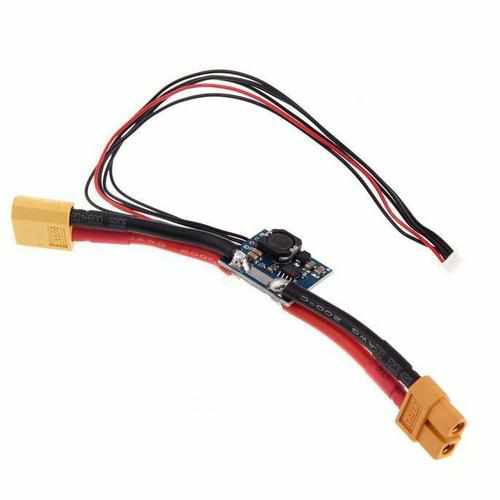

Pixhawk Power Module Cable:

Power Module is a simple way of providing your APM/Arduflyer with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6P cable. The on-board switching regulator outputs 5.3V and a maximum of 3A from up to a 7S LiPo battery.Special for APM2.5.2 APM2.6 Pixhawk flight controller.

XT60 Plug.

Max input voltage: 30V.

Max current sensing: 90A.

Voltage and current measurement configured for 5V ADC.

Switching regulator outputs 5.3V and 3A max.

6P molex cable plugs directly to APM/Arduflyer 2.5's 'PM' connector.

Note: The Power Module is only designed to power APM/Arduflyer, a RC receiver and accessories (GPS, Radio telemetry). It is not designed to power servos. Use your aircraft's own ESC/BEC for that.

Package size: 20 * 15 * 3cm / 8 * 6 * 1.2in

Package weight: 120g / 4.2 oz

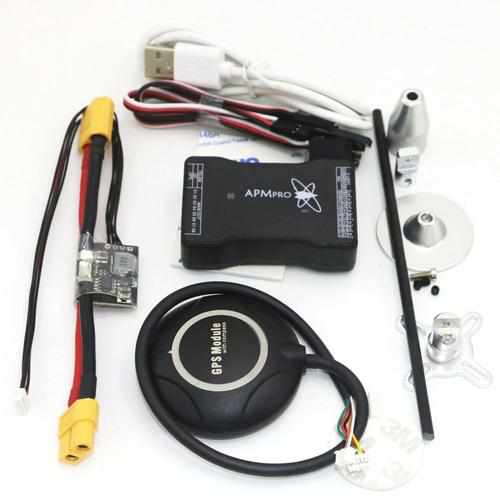

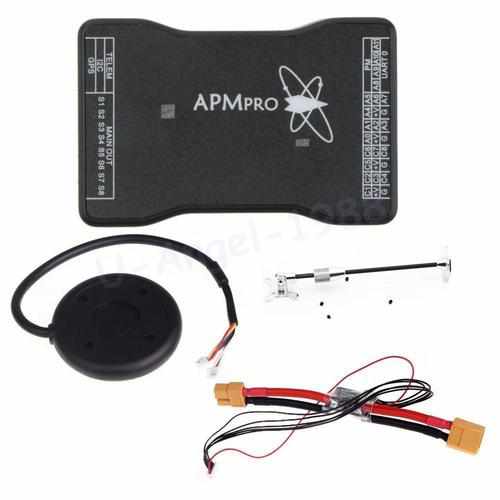

Packing content:

1 * APM PRO flight control

1 * 7M GPS module w/Roud plastic shell

1 * GPS Antenna Seat

1 * Power Module Cable
