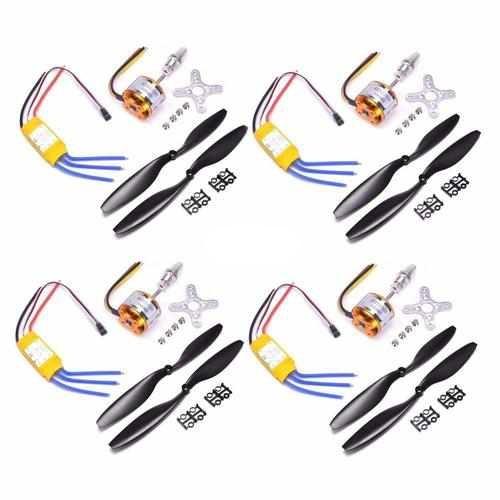

A2208 1100KV Brushless Outrunner Motor

A2212 1000KV / 1400KV brushless outrunner motor:

Max. efficiency: 80%

Max. efficiency current: 4-10A (>75%)

Current capacity: 12A/60s

No Load current @ 10V: 0.5A

No. of cells: 2-3 Li-Poly

Motor size: 27.5 * 27mm / 1.1 * 1.1in

Shaft diameter: 3.17mm / 0.1in

Weight: 48g / 1.7oz

A2208 1100KV Brushless Motor

Max Efficiency: 80%

Max Efficiency Current: 4-10A (>75%)

Current Capacity: 12A/60s

No Load Current @ 10V: 0.5A

No. Of Cells: 2-3 Li-Poly

Motor Dimensions: Φ27.8 x 23mm

Shaft Diameter: Φ3.17mm

Weight: 36g

30A Brushless ESC:

Output: Continuous 30A, burst 40A up to 10 Secs.

Input voltage: 2-3 cells lithium battery or 5-12 cells NiCd/NIMh battery

BEC: 2A / 5V (Linear mode).

Max speed: 210,000rpm for 2 poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.

(BLM: Brushless Motor)

Size: 45 * 24 * 11mm / 1.8 * 0.9 * 0.4in

Weight: 25g / 0.9oz

Item total weight: 480g / 1.06Lbs
