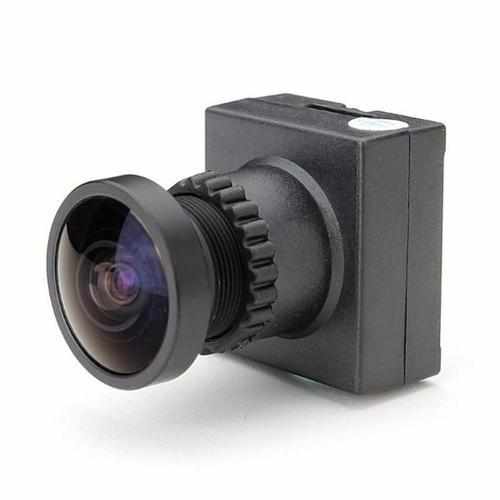

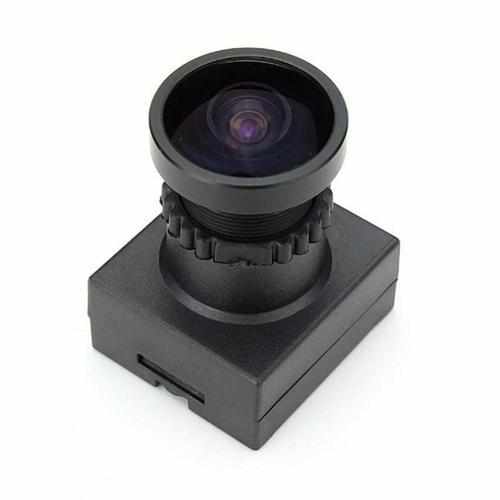

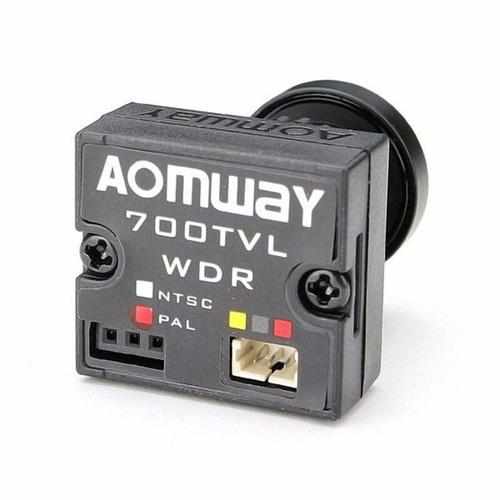

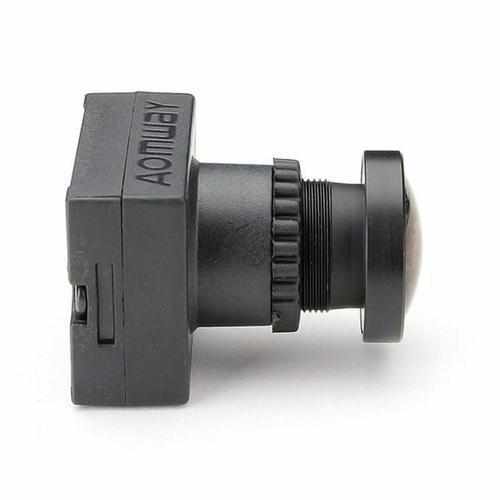

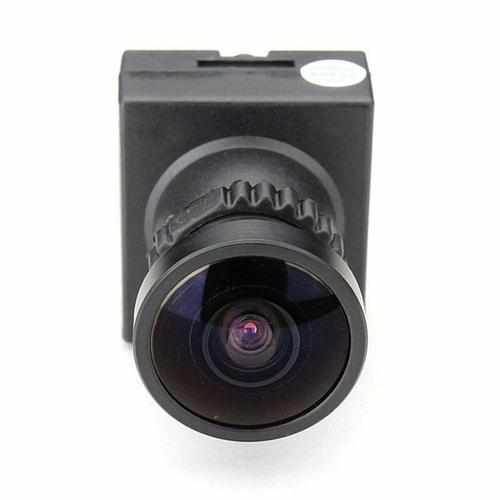

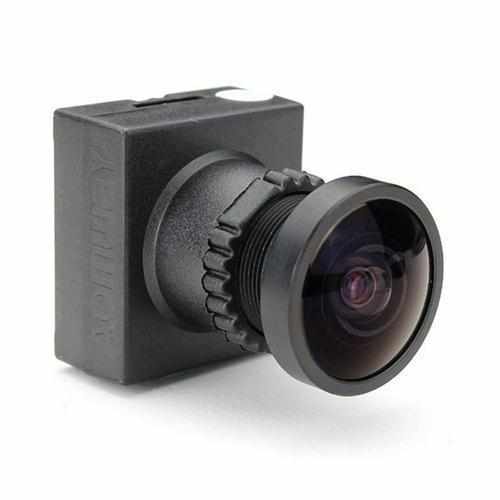

Aomway 700TVL V2 WDR HD CMOS FPV Camera

$104.00

Specification: Brand name:Aomway Item name:700TVL FPV camera Pixel size: 5.00um X 7.40um Picture elements:976 (H)*496(V) FOV:170 degree Resolution: 700TVL Sensor: 1/3” CMOS Lens: 2.1mm/170degree wide angle Sensitivity:10.8(V/Lux.sec) Scanning System:2:1 Interlace S/N Ration:More than 45db Signal type: PAL AV output: 1Vp_p...

  • Availability: In Stock
Type

Specification:

Brand name:Aomway

Item name:700TVL FPV camera

Pixel size: 5.00um X 7.40um

Picture elements:976 (H)*496(V)

FOV:170 degree

Resolution: 700TVL

Sensor: 1/3” CMOS

Lens: 2.1mm/170degree wide angle

Sensitivity:10.8(V/Lux.sec)

Scanning System:2:1 Interlace

S/N Ration:More than 45db

Signal type: PAL

AV output: 1Vp_p 75ohm

Gain Control:Auto

White Balance:Auto

Work voltage: 3.6-5.5V DC

Weight: 12g

Dimensions:22*20mm

AV output: 1Vp_p 75ohm

Current: 120MA

Port: JST 1.25*5p JST port for Aomway mini 200mw or 600mw telemetry devices

Mol 2.54*5p for common devices

Feature:

With 1/3'' CMOS sensor

Performance rivals CCD. Nice quality low cost.

Super lightweight,ultra-low power consumption,suitable for RC multicopter

Package Included:

1 X 700TVL camera

1 X Cable
