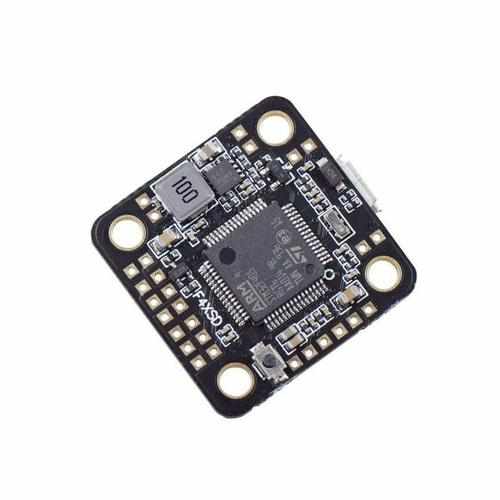

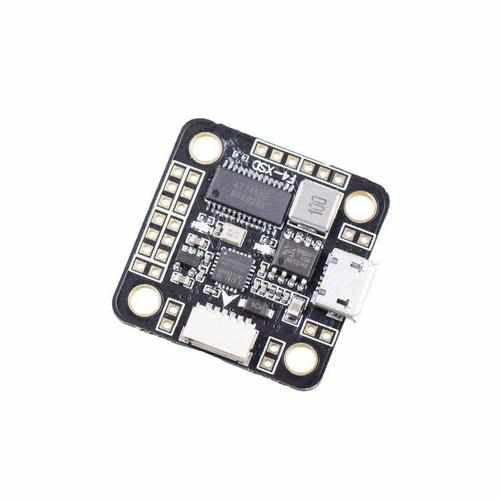

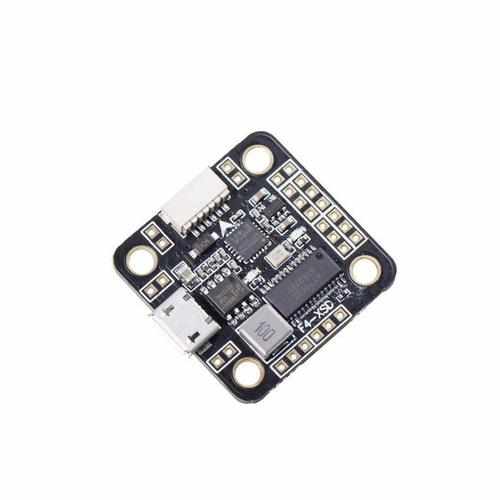

Betaflight F4 F4-XSD OSD 5V 9V BEC FPV 1S Flight Controller

Receiver configuration:

When DSM / IBUS receiver input, please configure RX1 as the input interface

SBUS, receiver input, please configure RX1 as the input interface.

Features:

CPU: STM32F405RGT6

Sensor: MPU6000 three-axis accelerometer / three-axis gyroscope (SPI connection)

Power supply: 2-6S battery input

BEC: 5V / 2A, 9V / 3A

Receiver: Support Sbus or serial RX interface, Spektrum 1024/2048, SBUS, IBUS, etc.

Supports 3.3v Spektrum satellite receiver

Support PPM receiver

Buzzer interface

Supports programmable LED_Strip

Support BLheli suite ESC programming

Built-in voltage detection and alarm

Built-in OSD function, BF online tuning

Dimensions: 27 * 27MM, screw hole distance 20 * 20MM, M2.5

Weight 4.2g

Package Included:

1x Flight Controller
