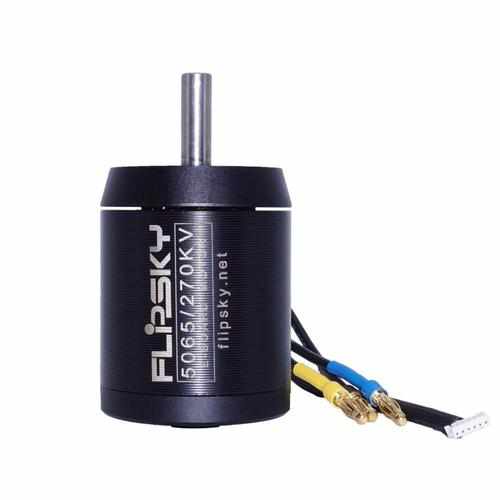

BLDC 5065 270KV 1550W Brushless Sensored Motor For Electric Scooter

Specifications:

Max Power: 1550 Watts

Max Current: 80 Amps

No-load Current: 1.12A 10V

Max Volts: 41.5V

Lipo: 3S-8S (11.1V-29.6V)

Max Torque: 4Nm

Motor Resistance: 64mΩ

Weight: 0.99 lb / 0.45 kg

The motor length:65mm

The motor diameter: 50mm

SHAFT: Diameter 8mm, 20mm length, 3x3x15mm keyway slot.

Motor Wire: 160mm silicone 16AWG wire with 4.0mm Gold Bullet Connector Male.

Wire configuration:

Blue（Heat shrinkable film） = A

Black （Heat shrinkable film）= B

Yellow （Heat shrinkable film）= C

Brushless Motor

The number of pole: 14

Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch

Internal PCB with 120 Degree Hall Effect Sensors.

Motor can be used with or without a sensor. Sensorless operation is most common.

VESC Sensor Wires required to use with VESC.

Wire configuration:

Red = 5v

Blue = A

Yellow = C

Green = B

Black = GND

What's Our Product Features:

Stator: Lamination Japan steel

12awg high strand silicone wire with 4.0mm gold bullet connectors.

Both support sensor and sensorless mode!
