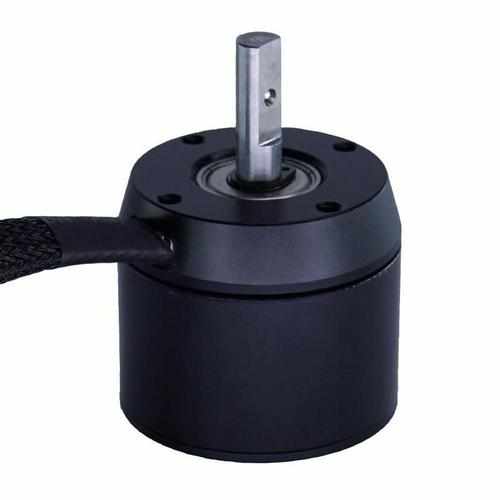

BLDC Motor H5045 200KV 1150W

Specifications:

Max Power: 1150W

Max Current: 32A

Max Volts: 12S

Max Torque: 0.85 N.m

Recommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A)

Weight: 0.74 lb / 0.34 kg

The motor length:48.6mm

The motor diameter: 49.5mm

SHAFT: Diameter 8mm, 25mm length （Recommended: Flipsky 8mm D-shape motor pulley）

Motor Wire: 300mm silicone 16AWG wire with MT30 male connector.

Wire configuration:

Blue = U

White = V

Yellow = W

BLDC Motor

The number of pole: 14

Sensor Wire: Standard RC Sensor Wire HY2.0-5P connector

Package：

1* H5045 Motor

1* free VESC sensor wire
