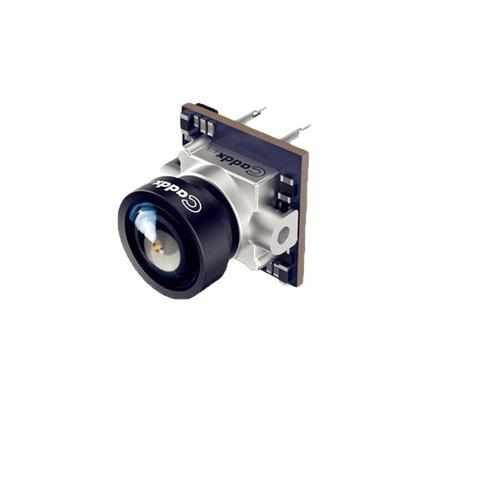

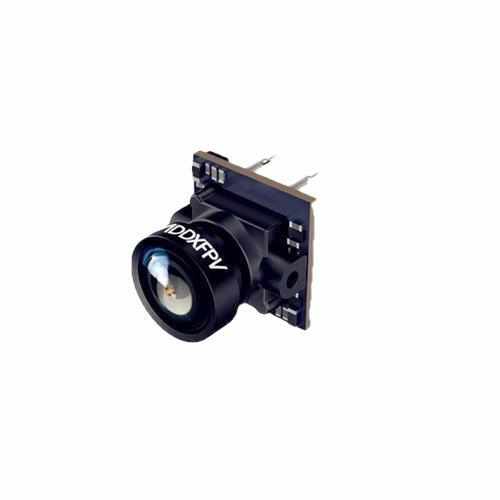

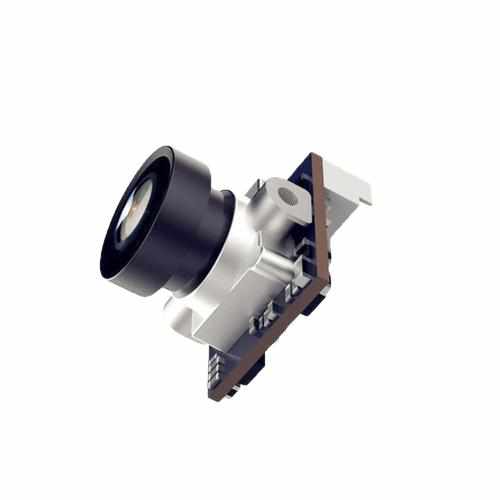

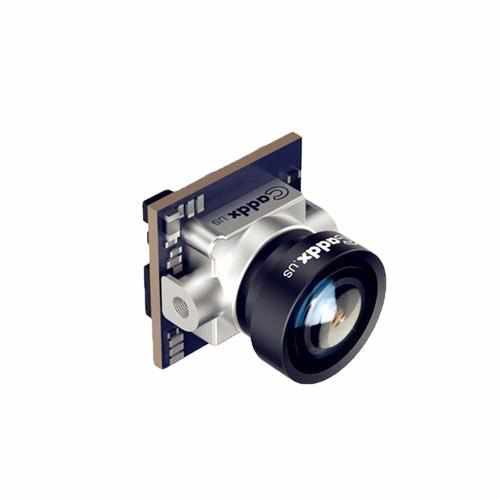

Caddx Ant 1.8mm 1200TVL Global WDR OSD FPV Camera

Specification:

Model: Caddx Ant

Image Sensor: 1/3" CMOS Sensor

Horizontal Resolution: 1200 TVL

TV System: NTSC or PAL

MENU: Support

IMAGE: 16:9 or 4:3

Synchronization: Internal

Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000

S/N Ratio : >52dB (AGC OFF)

Video Output: CVBS

Lens: 1.8mm

Min. Illumination: 0.001Lux@F1.2

Auto Gain Control: YES

BLC: YES

WDR: Global WDR

DNR: 3D DNR

Dimensions: 14*14mm(with bracket to 19*19mm)

Wide Power Input: DC 3.7-18V

Work Temperature: -20℃~+60℃

Work Humidity: 20%~80%

Weight: 2g (N.W.)

Packing List:

Camera x1

3pin FPV silicone cable x1

Warranty card x1

Expend bracket x1

Screws x 4
