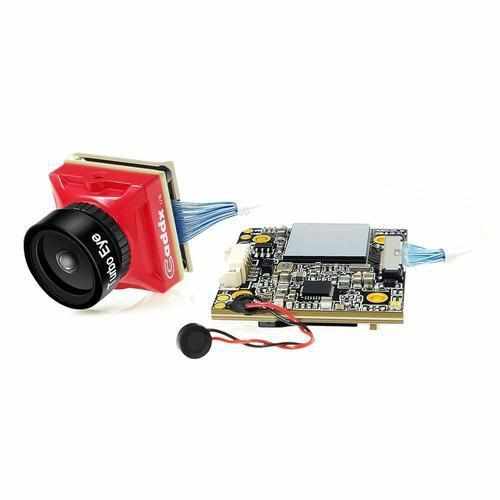

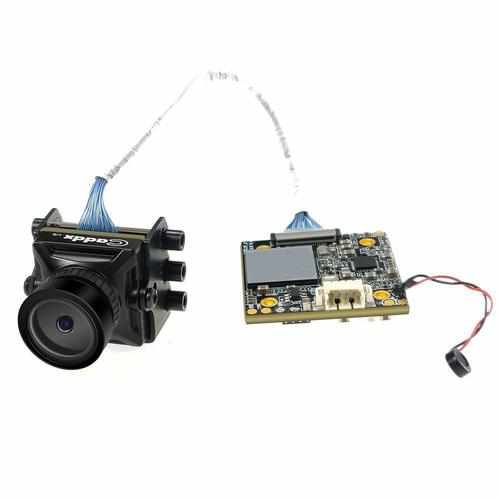

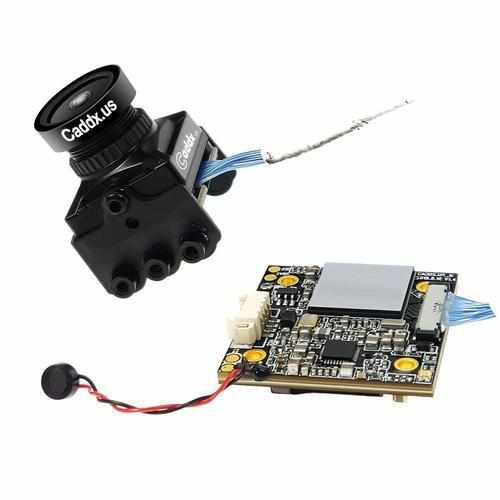

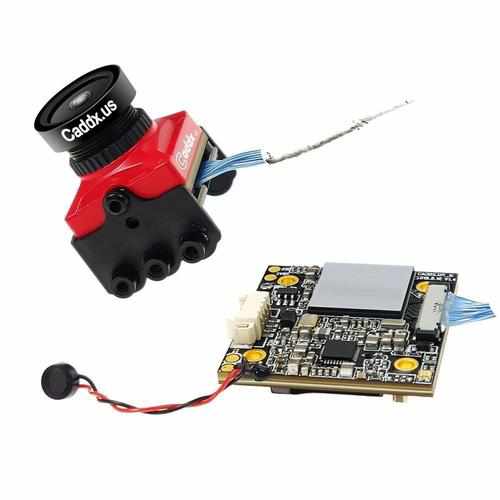

CADDX Turtle V2 800TVL NTSC / PAL CMOS Sensor FPV Camera

Specification:

Image sensor: 1/2.7" CMOS sensor

Horizontal: 800TVL

TV system: NTSC/PAL,changeable

Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps

Power Input: DC 4.5-20V

FPV FOV: 155°

Recording FOV: 170°

Mini Illumination: 0.01lux

Image Resolution: 2 Megapixels

Lens: 1.8mm Turbo Eye Lens

Working Current: 380mA@5V/160mA@12V (low consumption)

OSD Menu: Yes (Support Voltage Display)

Video Files: MP4

Audio: Support

Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100

S/N Ratio: >60dB (AGC OFF)

Video Output: CVBS

Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II)

Net weight: 12g(more or less)

Color: Red/Black

Features:

New Turbo Eye lens

More rational PCB layout and 20x20mm mounting holes - no offset hole!

Microphone

Wrapped cable

Default image setting improvements

Quick operation guide:

RIGHT BUTTON: Press the RIGHT button for 3s-5s to activate video recording, in the meanwhile the light on the lower right corner will flicker.

LEFT BUTTON: Press the LEFT button for 3s-5s to stop video recording.

DOWN BUTTON: Press the DOWN button for 3s-5s to switch the resolution, 720P with Blue LED on, 1080P with Red LED on, the default mode is 1080P.

MIDDLE BUTTON: The MIDDLE button is the menu button.

Notice: The camera need at least 8G Class 10 SD card.

Package included:

1 x Caddx Turtle V2 Camera

1 x 5D-OSD Menu Board

1 x Bracket for camera

1 x 30x30mm mounting bracket

1 x 4pin FPV Silicon Cable (extend into a 2pin joint for OSD board and a 3pin joint for FPV)

1 x Internal hexagonal wrench

1 x Manual

1 x Warranty card

Note: Full-size metal bracket shown in some photos is not included at this time.
