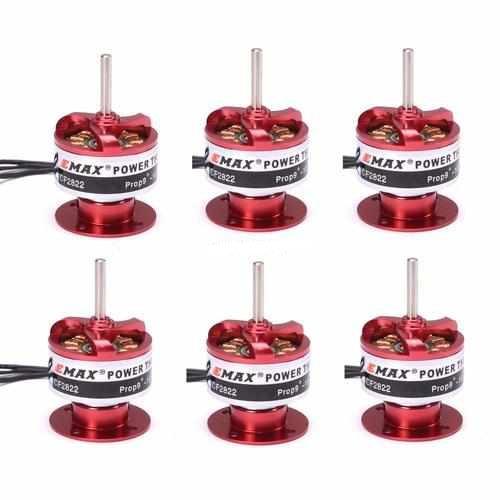

CF2822 1200KV Brushless Motor with Prop Saver

EMAX CF2822 Specifications:

Diameter = 1.1 inch (28mm)

Length not including shaft = 1.2 inches (30mm)

Shaft Length = 0.62 inches (15mm)

Shaft Diameter = 3mm

Voltage = 7.2 to 12.6

KV = 1200

Current = 16 amp maximum for 60 seconds

Features:

The GWS EP9050 produces 30 ounces of thrust at 17 amps. Use with caution

The GWS EP8040 produces about 24 ounces of thrust at 12 amps. Best all around prop for this motor.

The TP 8x4E produces 25 ounces of thrust at 14 amps.

The GWS HD8060 produces 22 ounces of thrust at 17 amps. Use with caution

The GWS EP7035 produces 15 ounces of thrust at 7 amps.

The TP 7x6E produces 19 ounces of thrust at 12 amps.

Recommended props when using 2 cell Lipo batteries:

The GWS EP1170 prop produces about 21 ounces of thrust at 15 amps

The GWS EP1060 prop produces about 18 ounces of thrust at 12 amps.

The GWS EP1047 prop produces about 19 ounces of thrust at 13 amps.

The GWS EP9050 prop produces about 16 ounces of thrust at 10 amps.

The GWS EP8040 prop produces about 12 ounces of thrust at 6.5 amps.

The above data is a result of our own testing using fully charged Lipo batteries.

Package Including :

4pcs/ 6pcs CF2822 1200KV Brushless Motor
