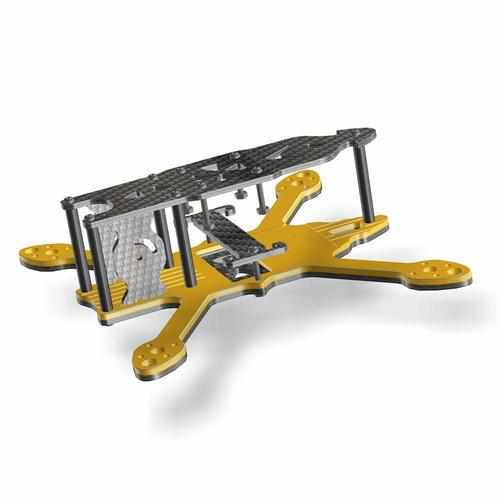

D3 146mm 3 Inch Racing Frame Kit

Specification:

Model: D3

Item Name: 146mm 3 Inch Racing Frame Kit

Wheelbase: 146mm

Arm Plate Thickness: 4mm ( 2mm + 2mm)

Bottom Plate Thickness:

Material: Carbon Fiber + Aluminum Alloy

Uppper Plate Thickness: 2mm

Frame Net Weight: 60g

Features:

Special Dedign, compatible with DJI FPV System

Double bottom plate ( 1 PC in Carbon Fiber , 1 PC in Aluminum Alloy)

install Digital unit and motor directly onaviation aluminum plate, good heat dissipation

Recommend Parts:

Flight Controller: 20x20mm F4/ F7 Flight Controller

Brushless Motor: 13-15 Series Motor ( 12mm Hole)

Propeller: 3 Inch 3-Blade Propeller

VTX & Camera: DJI Digital Air Unit FPV System

Lipo Battery: 3-4S 850mAh / 3S 1500mAh Lipo

Pacakge Included:

1x D3 146mm Frame Kit

2x Battery Strap

2x Battery Ati-Slipping Mat
