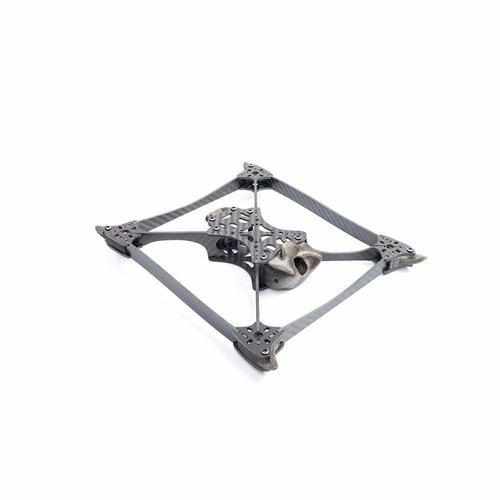

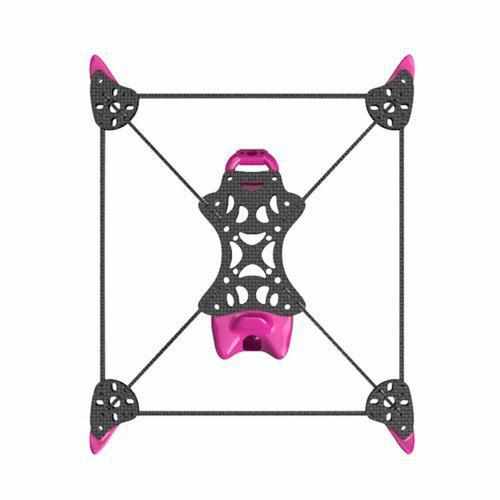

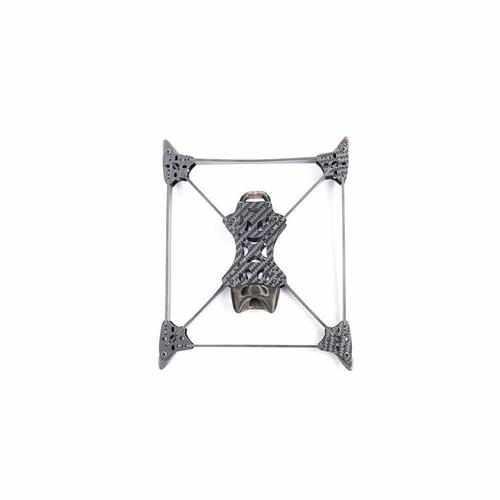

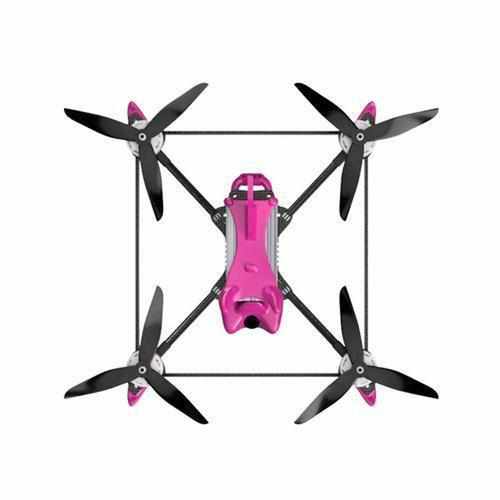

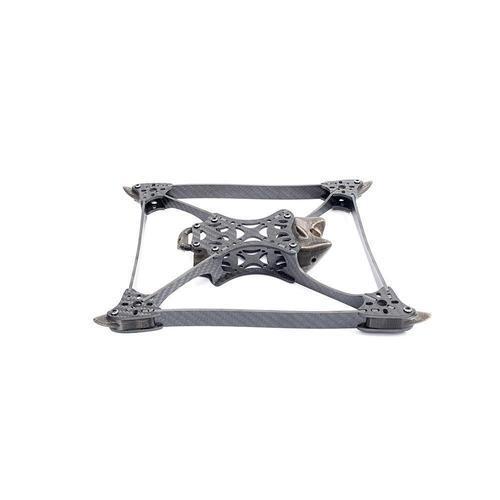

DIATONE/FALCON SOLLEVA Vertical 2.5mm Arm FPV Frame

Wheelbase

240mm

Prop size

5" top mount, 6" bottom mount

Weight

115g with 3D printed parts(No Fins)

Thickness

2.5mm arms, braces, and motor mounts, 2mm top and bottom plates

FC mounting

20x20mm and 30.5x30.5mm holes are provided, with gummy mounting at 30.5mm

Motor mounting

Slots for 16x16, 16x19mm, and 19x19mm

Camera mounting

19mm wide cameras, 12mm wide lenses

Stack height

up to 25mm

HD Cameras Supported

GoPro Hero, GoPro Session, 360° cameras w/tripod screw, DJI Air Unit
