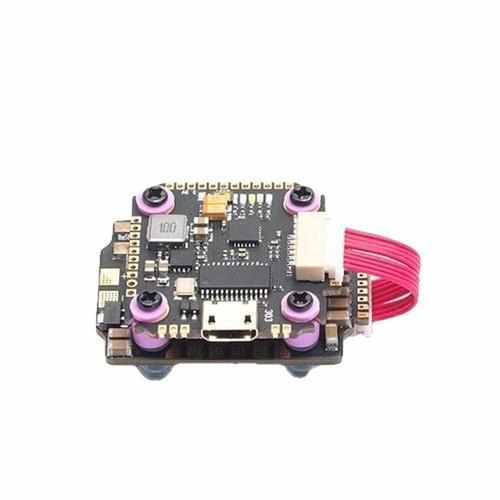

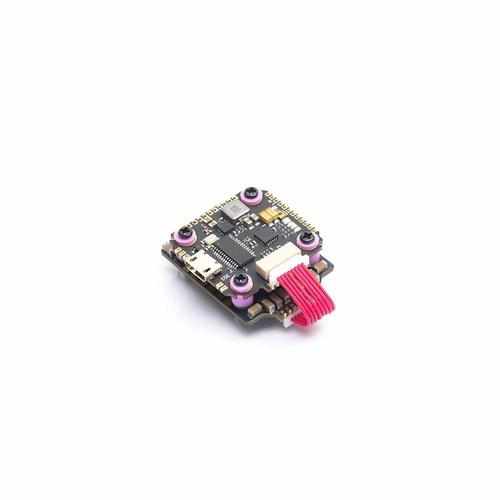

Diatone MAMBA F405 Mini MKII/MKIII Flight Controller / Brushless ESC

Specification:

Brand: Diatone

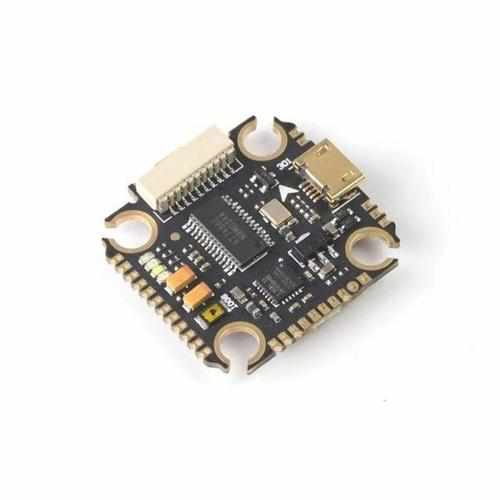

Item name: MAMBA F405 flight controller MK2

MCU: STM32 F405

Six-axis: MPU6000

Flash: 16M

OSD: AT7456

BEC: 5V 1A (burst current 1.5A)

Input: 2-4S Lipo (7.4V-16.8V)

Size: 30x30x5.6mm

Firmware：Fury F4 OSD

Mounting: φM3

Weight: 3.5g

Package included:

1 x MAMBA F405 flight controller

Specification:

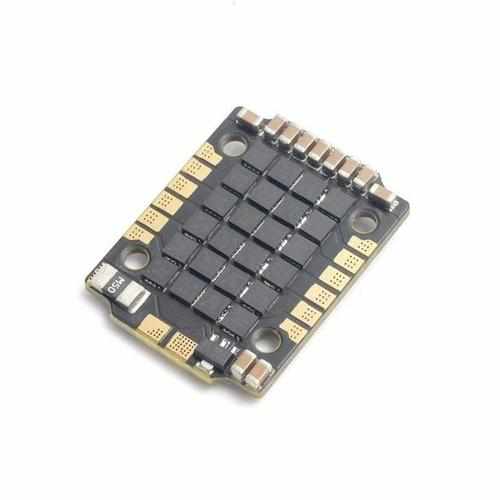

Mamba F25 ESC

Item name: Mamba F25HV ESC

Input voltage: 2~4S (7.4V~16.8V)

Curr :139A

BEC: NO

Size: 30×30×5mm

Mounting: M2

Weight: 7g

Capacitance: Samsung 242UF(22UF×11pcs)

Specification:

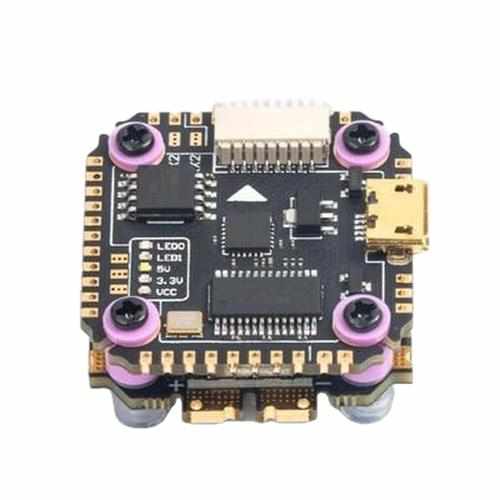

Mamba F405 Mini MK3

Item name: F405 Mini MK3 Betaflight Flight Controller

Input: 3-6S LIPO (12.5- 25V)

UARTS:6 Ports

BEC: 5V 2A

MCU: STM32F405

Gyro: MPU6000

FLASH: 16M

OSD: BF OSD

Mounting Hole: M2

Weight: 4g

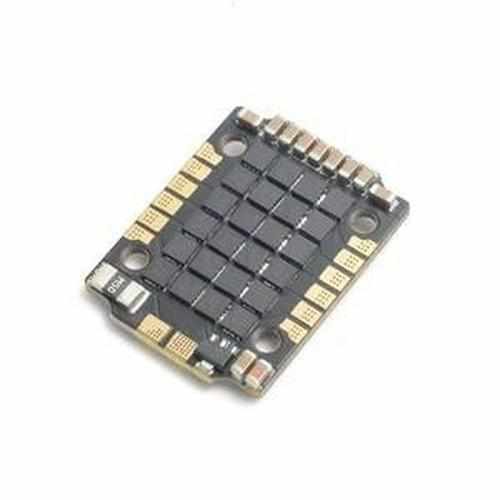

Mamba F35 35A ESC

Item name: Mamba F35HV ESC

Input voltage: 3-6S LIPO (12.5- 25V)

Curr :200A

MAX:45A(8S)

BEC: NO

Mounting Size: 20×20mm,⌀ 2

Mounting Hole: M2

Weight: 7g

Package Included:

1 x Mamba F4 Mini Betaflight Flight Controller
